DRAM <Semiconductor Device Principles>

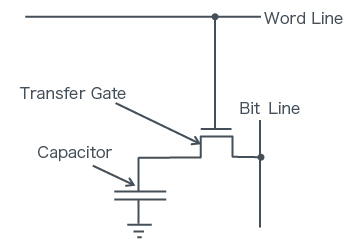

Memory Cell Structure

Consists of 1 Transistor and 1 Capacitor.

Consists of 1 Transistor and 1 Capacitor

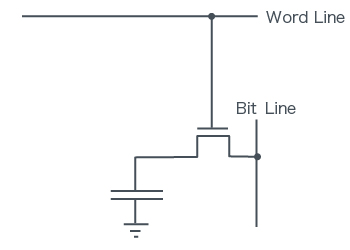

Data Write Method

In the Case of '1':

  1. Word Line potential is High
  2. Bit Line potential is High
  3. Word Line potential is Low
1??

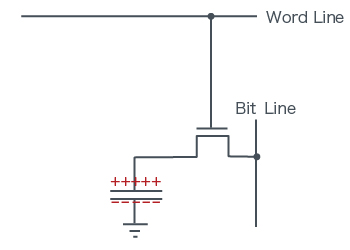

The state of '1'

0??

The state of '0'
