Industrial UPS - 100kVA
UPS (Uninterruptible Power Supplies) ensure the continuous operation of critical electronic equipment to minimize the risk of data loss and system failure by providing a steady supply of power for a certain period of time in the event of unexpected power outages or failures. ROHM delivers a wide variety of power semiconductors and circuit topologies that can be tailored to a range of applications, from small to large 100kVA UPS, contributing to the creation of robust power supply systems.

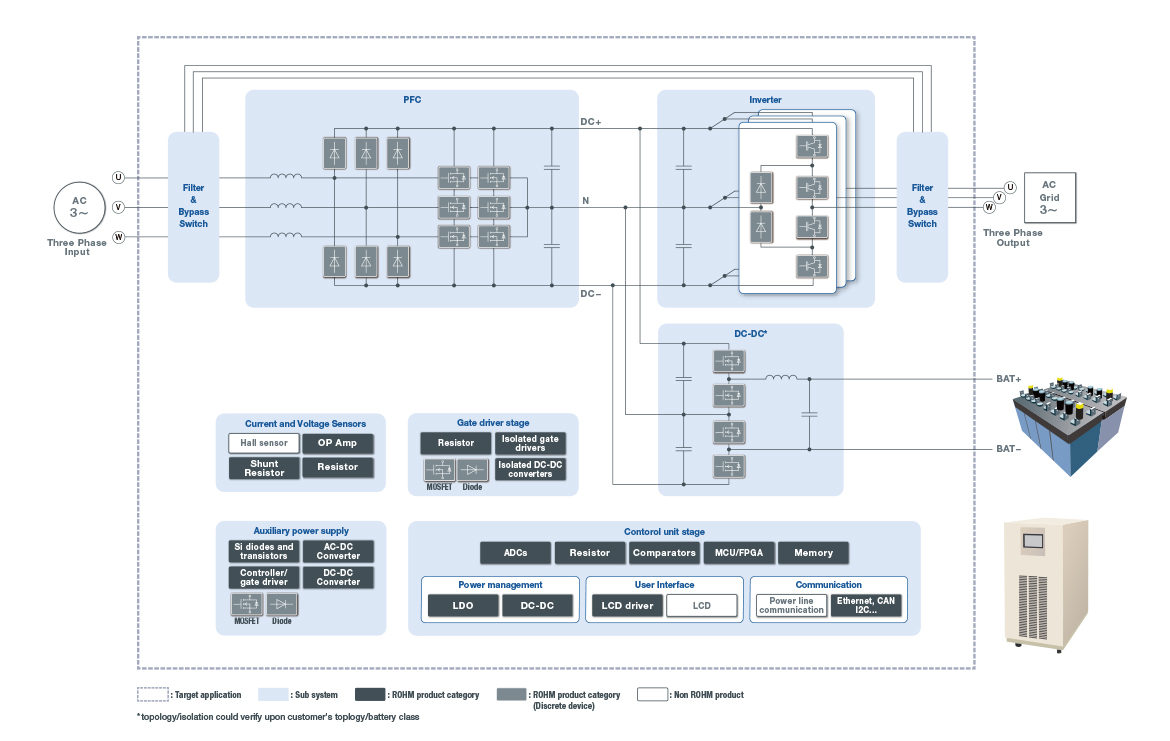

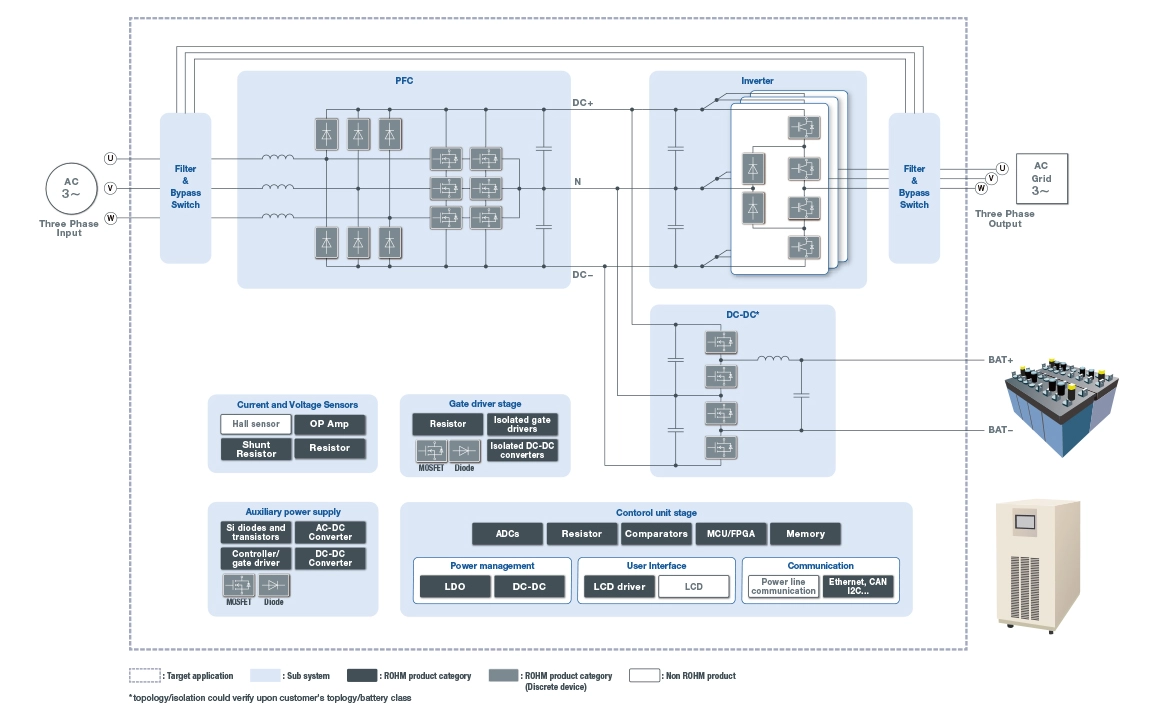

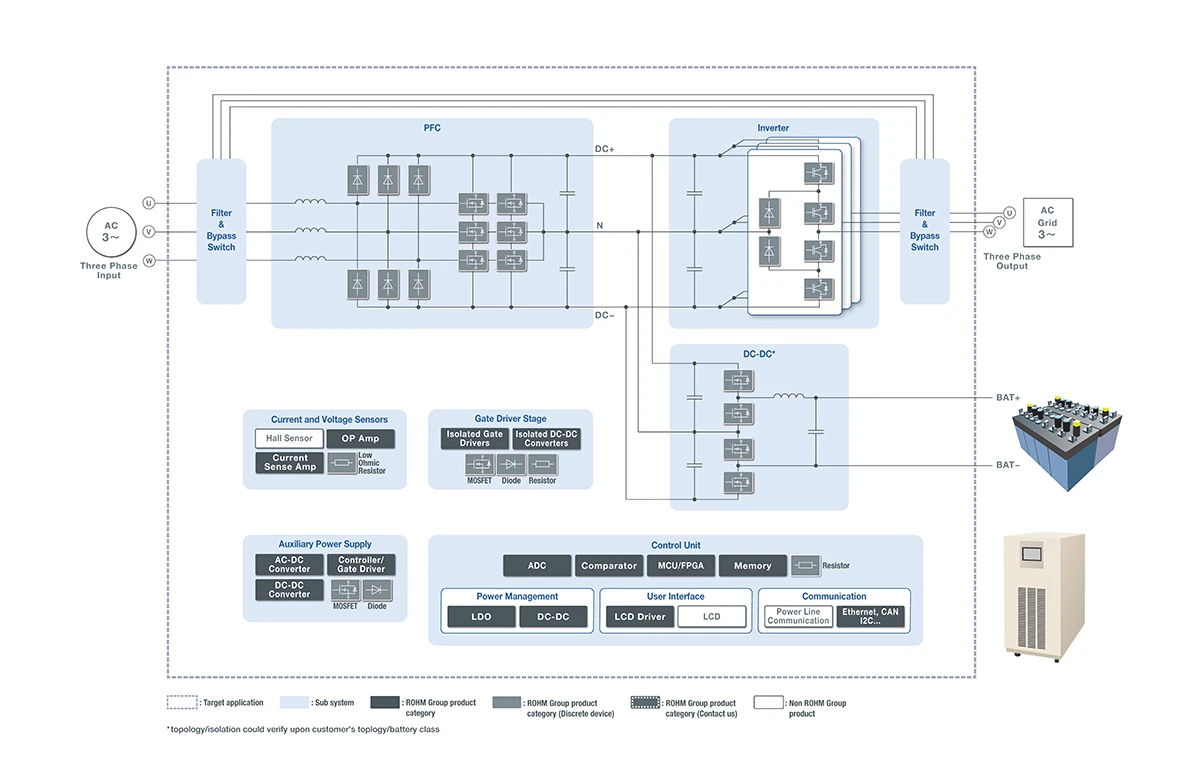

Block Diagram
*Click to enlarge image.
Topology Selection
When designing an electronic circuit, especially power system circuits, it is necessary to select a circuit configuration (topology) that meets the required specifications because input voltage, output voltage, power, isolation, etc. vary depending on the application. The selection of the most suitable components also differs depending on the topology. If the wrong components are selected, the required specifications cannot be met and the circuit design must be redone. The topology selection page provided by ROHM guides you through the selection of the best device for different topologies.
Reference Designs
We provide solution boards that solve various customer problems by combining ROHM ICs and discrete products. System-level evaluation results and design data as reference designs are also offered to help customers reduce development load.
Design Models
Various simulation models for circuit and thermal simulations of power devices and ICs can be downloaded from individual product pages or the following links.
