Cluster
With the electrification of motorcycles, instrument clusters and CIDs (Center Information Displays) incorporating LCD panels have evolved to feature higher resolution and greater functionality.
ROHM supports these advancements with a variety of key components for LCD panel modules, including panel driver ICs, timing controllers, and LED drivers for LCD backlighting.

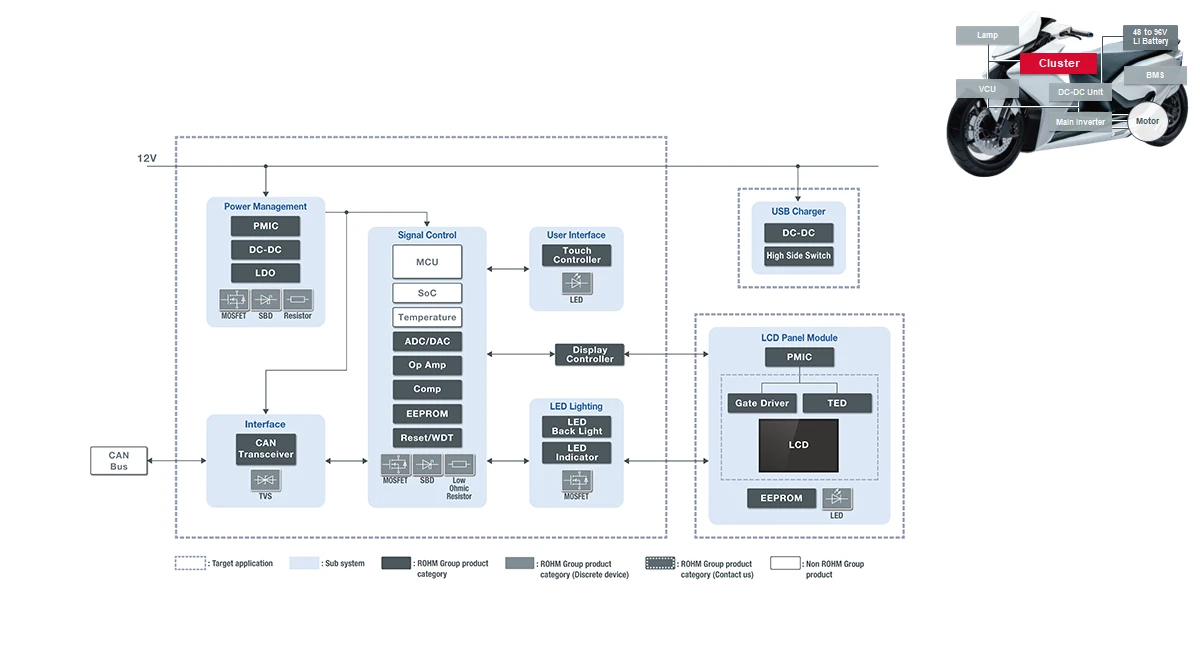

Block Diagram - High-End Model
*Click to enlarge image.

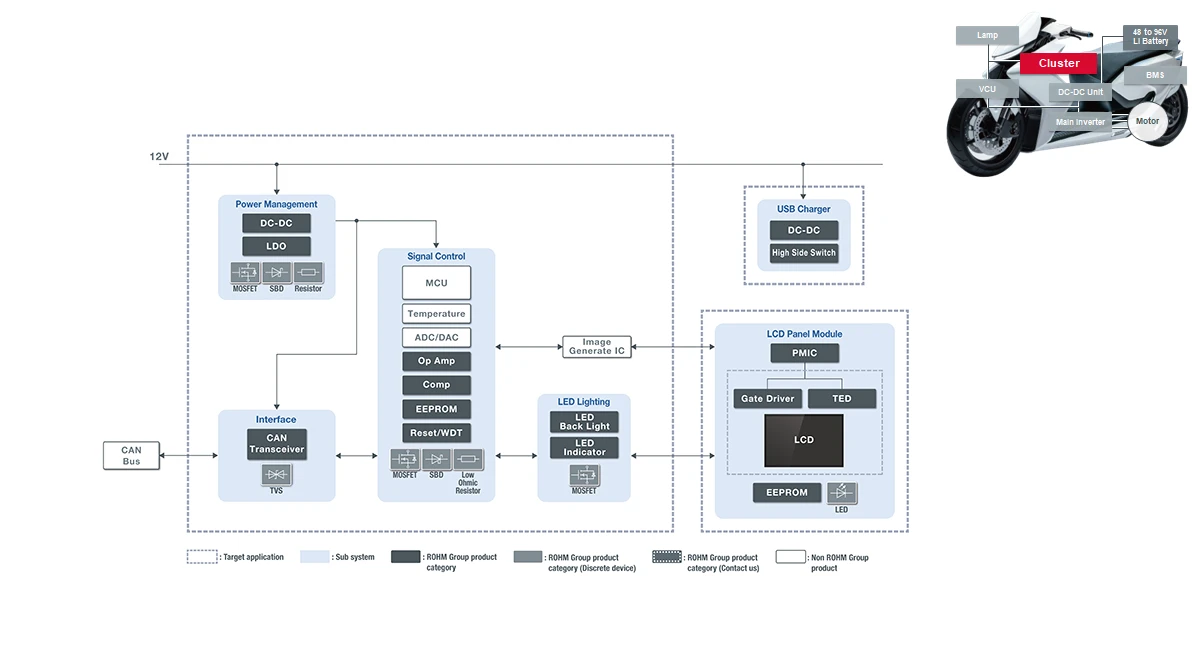

Block Diagram - Low-End Model
*Click to enlarge image.
Reference Design
ROHM provides a system-level evaluation board (solution board) that combines ROHM's IC and discrete products. We have already solved not only the characteristics of individual products but also the problems that may occur when combining them to build a system, thus contributing significantly to the reduction of development time for our customers.
ROHM Solution Simulator
ROHM Solution Simulator is a new web-based electronic circuit simulation tool that can carry out a variety of simulations, from initial development that involves component selection and individual device verification to the system-level verification stage.
*MyROHM Login Required.
Design Model
ROHM offers simulation models, including thermal models, PLECS models, and Ray files, for circuit and thermal simulations of discretes and ICs, including power devices.
Catalog
- Nano Power Supply Technology Brochure
-
- ComfySIL™ Brochure (for Functional Safety)
-
- Automotive Regulator Selection Guide
-
- IPD / Smart Switch Brochure
-
- Next Generation Op Amp Brochure
-
