EV Charging Stations (Off-board Charger)
Fast charging technology at charging stations is quickly becoming indispensable for enhancing the convenience of EVs. To this end, high efficiency, high-frequency switching is necessary to reduce the size and weight of devices for rapid charging. ROHM contributes to even greater efficiency by providing power solutions such as driver ICs and power semiconductors centered on SiC devices along with high accuracy current detection using shunt resistors and current detection amps.

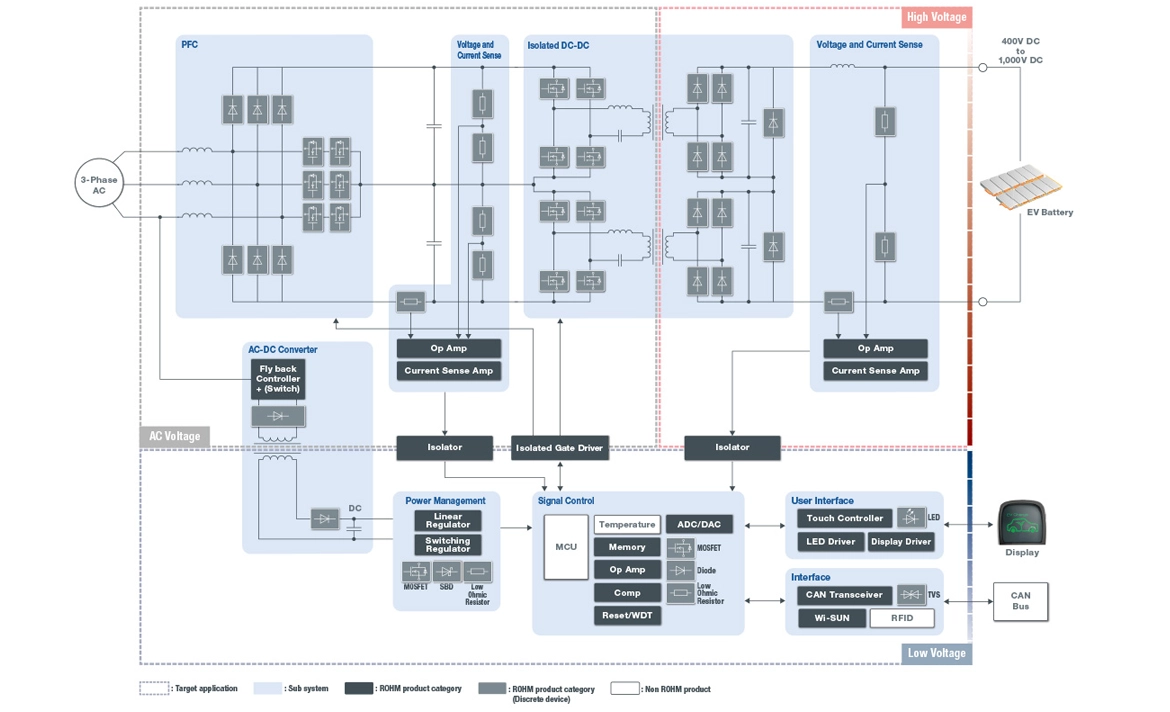

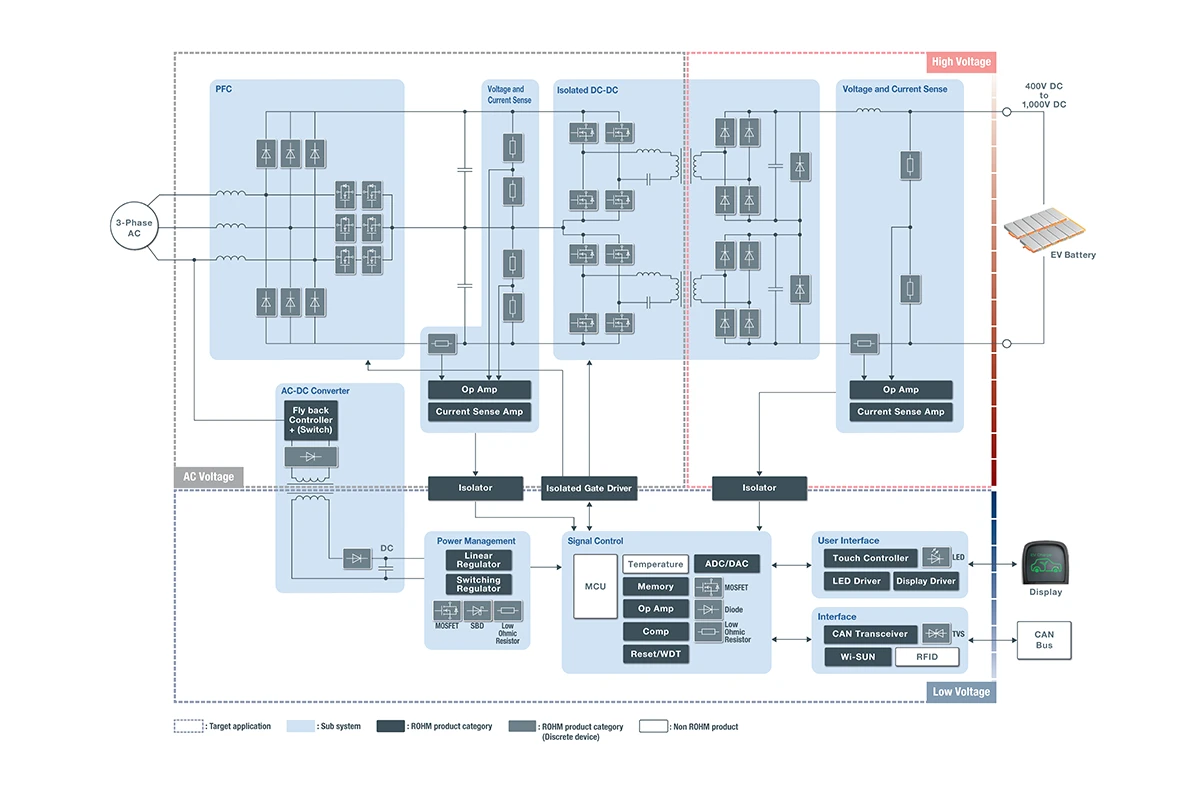

Block Diagram - Vienna rectifier D6M6-PFC
*Click to enlarge image.

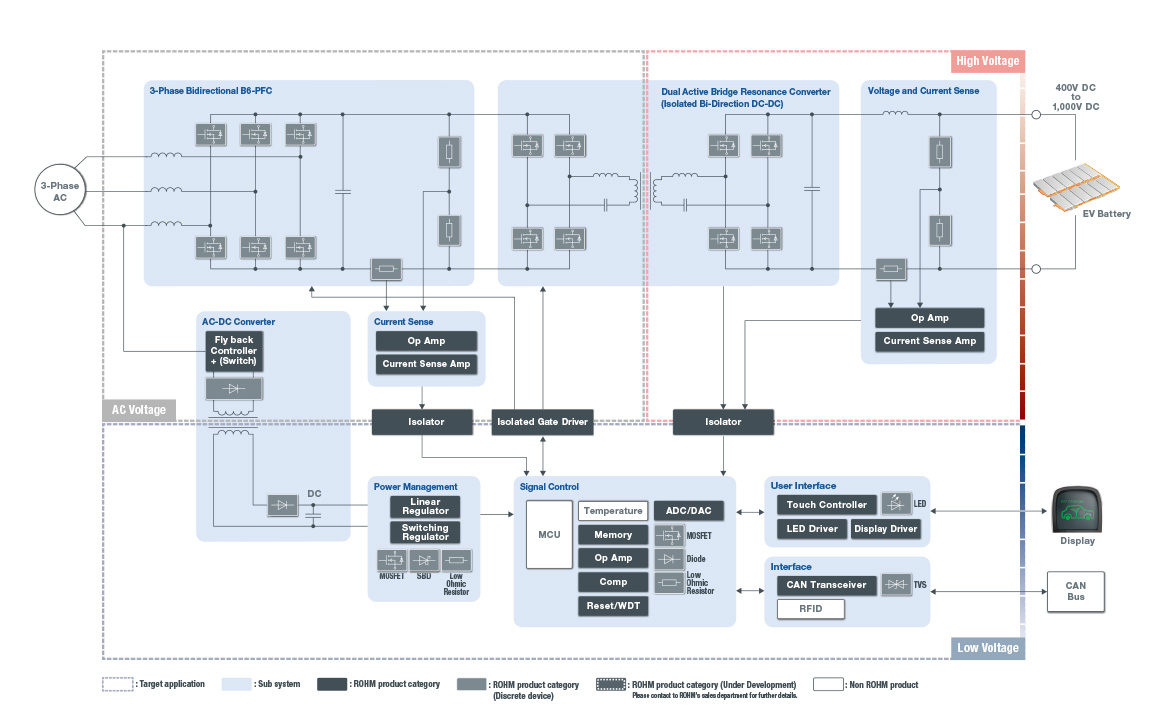

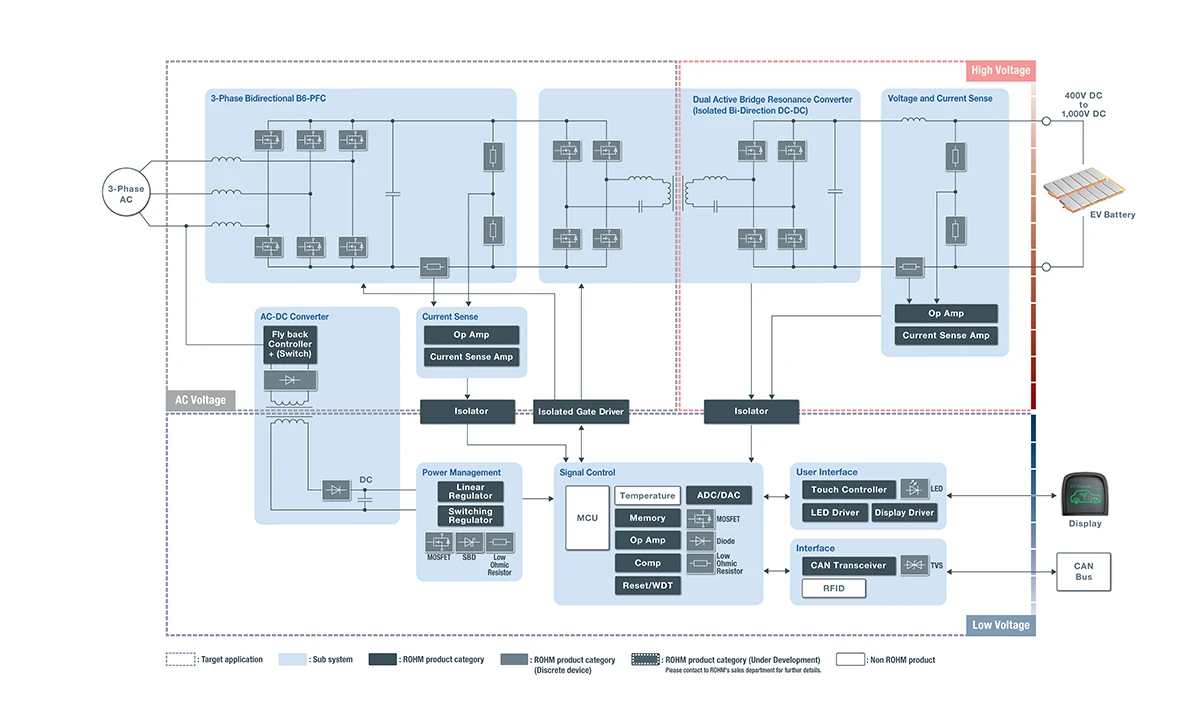

Block Diagram - 3-Phase Bidirectional B6-PFC
※Click to enlarge image.
Topology Selection
When designing an electronic circuit, especially power system circuits, it is necessary to select a circuit configuration (topology) that meets the required specifications because input voltage, output voltage, power, isolation, etc. vary depending on the application. The selection of the most suitable components also differs depending on the topology. If the wrong components are selected, the required specifications cannot be met and the circuit design must be redone. The topology selection page provided by ROHM guides you through the selection of the best device for different topologies.
Reference Designs
We provide solution boards that solve various customer problems by combining ROHM ICs and discrete products. System-level evaluation results and design data as reference designs are also offered to help customers reduce development load.
・Reference Designs
・Isolation Fly-back Converter Quasi-Resonant method Output 24W 24V Reference Design
・Built-in SiC MOSFET Isolated Fly-back Converter QR method Output 48W 24V Reference Design
・Reference Board forLow-side Current Sensing Circuit Reference Design
Design Models
Various simulation models for circuit and thermal simulations of power devices and ICs can be downloaded from individual product pages or the following links.
Common to All Products
Discretes only
(power devices, MOSFETs, transistors, diodes, etc.)
・LTspice
・Thermal
・PLECS
ICs only
(op amps, power management ICs, power supply ICs, etc.)
・ Unencrypted SPICE (downloadable from each product page)
This is an unencrypted version of PSPICE, a SPICE model that can be imported into any simulator.
ROHM Solution Simulator
ROHM Solution Simulator is a new web-based electronic circuit simulation tool that allows a variety of simulations to be carried out, from initial development that includes component selection and individual device verification to the system-level verification stage. This makes it possible to quickly and easily implement batch verification of ROHM power devices (i.e. SiC) and ICs (e.g. driver and power supply ICs), in simulation circuits under close to actual conditions, significantly reducing application development load.
*MyROHM registration required
Video
ROHM SiC Power Solutions
ROHM offers SiC power devices and solutions that contribute to greater application miniaturization and efficiency. Please consider ROHM for all your SiC design needs.
