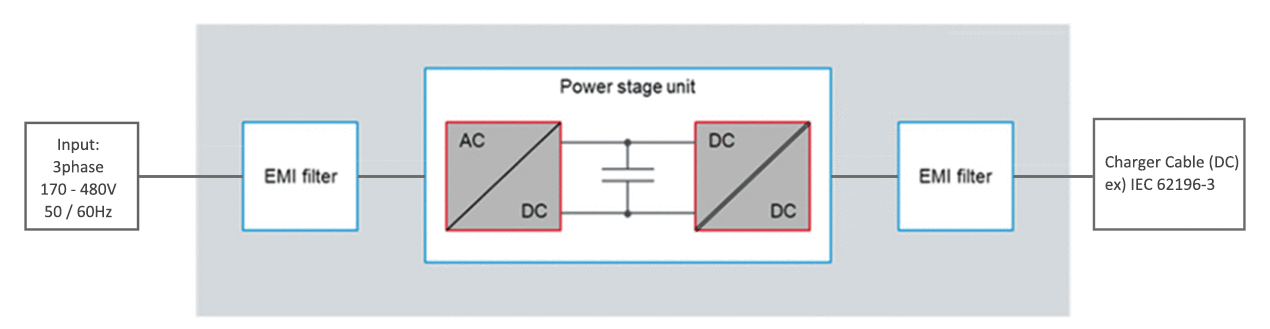

Power Stage Topology Selection - EV Charging Station

Power Stage Topology Selection - ON Board Charger for EV (OBC)

AC/DC

  • 3-phase 2-level full bridge PFC (Bidirectional)

    3-phase 2-level full bridge PFC
    (Bidirectional)

  • 3-phase 3-level vienna PFC (Unidirectional)

    3-phase 3-level vienna PFC
    (Unidirectional)

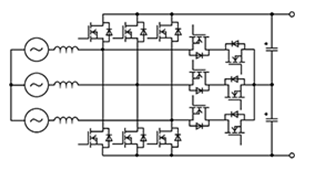

  • 3-phase 3-level NPC type-T PFC

    3-phase 3-level NPC type-T PFC

DC/DC

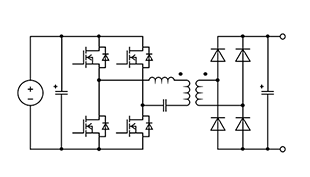

  • LLC Converter(Full Bridge, Diode Bridge)

    LLC Converter
    (Full Bridge, Diode Bridge)

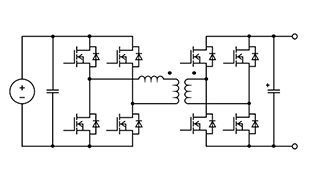

  • Dual Active Bridge (DAB) Converter

    Dual Active Bridge (DAB) Converter
