3-phase 3-level NPC type-T PFC
Description
This topology circuit is a PFC circuit that uses the NPC (Newtral Point Clamp) scheme commonly found in inverter circuits. By adopting the multi-level scheme, it is expected that power loss will be reduced (higher efficiency). In addition, by using SiC products, it is possible to achieve even higher efficiency.
Overview
- 3-phase PFC
- Multilevel
- Achieves high efficiency

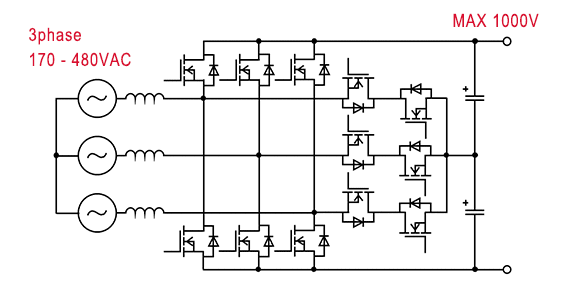

Circuit

Key Products
Product Category | Product family | Product Number | Feature |
---|---|---|---|
Transistor | 1200V SiC MOSFET | SCT4xxxKx series NEW | The latest SiC MOSFET device. Enhanced low on-resistance enable best in class performance.It supports 1200V withstand voltage, ideal for higher voltage applications. |
SCT3xxxKx series | Trench-gate SiC MOSFET with low on-resistance (50% reduction) compared to conventional products. | ||
Gate Driver | 3750V voltage tolerance | BM61x4xRFV | 1ch configuration, 3,750Vrms isolated type Gate Driver, can be used for switching devices with current source pins. |
Simulation
Coming soon
