Solar Power Inverter (PV Inverter)

The shift toward renewable energy is accelerating as the demand for photovoltaic power generation systems rise in pursuit of a low-carbon society.

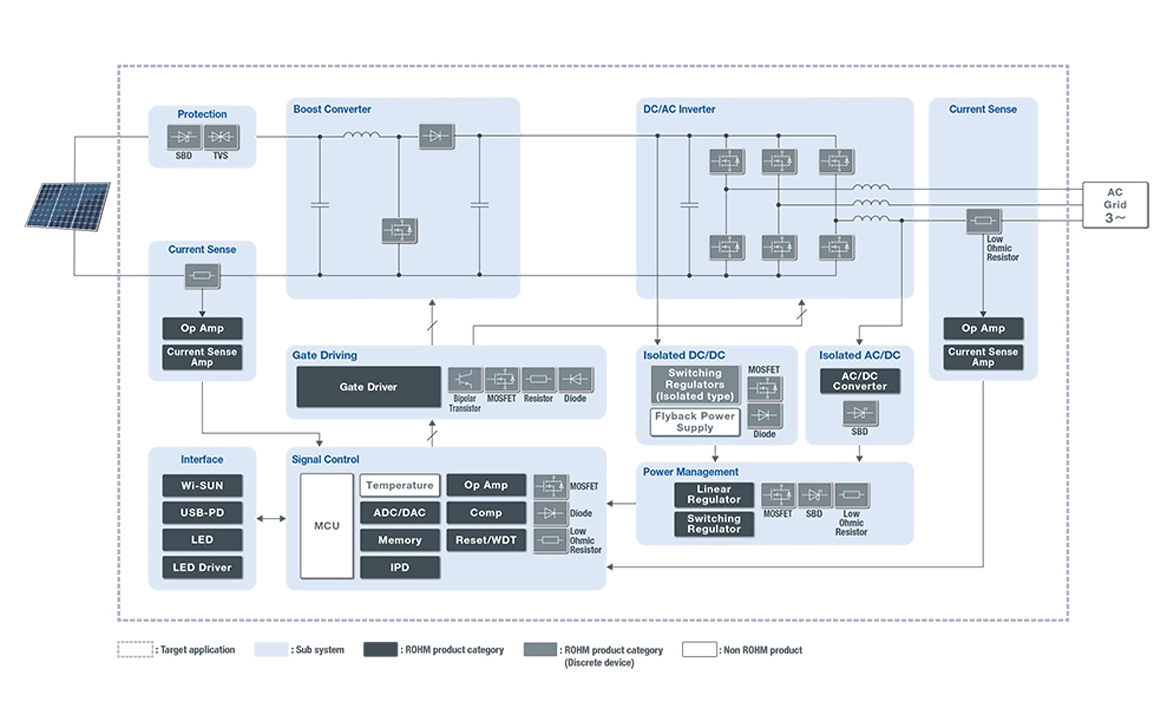

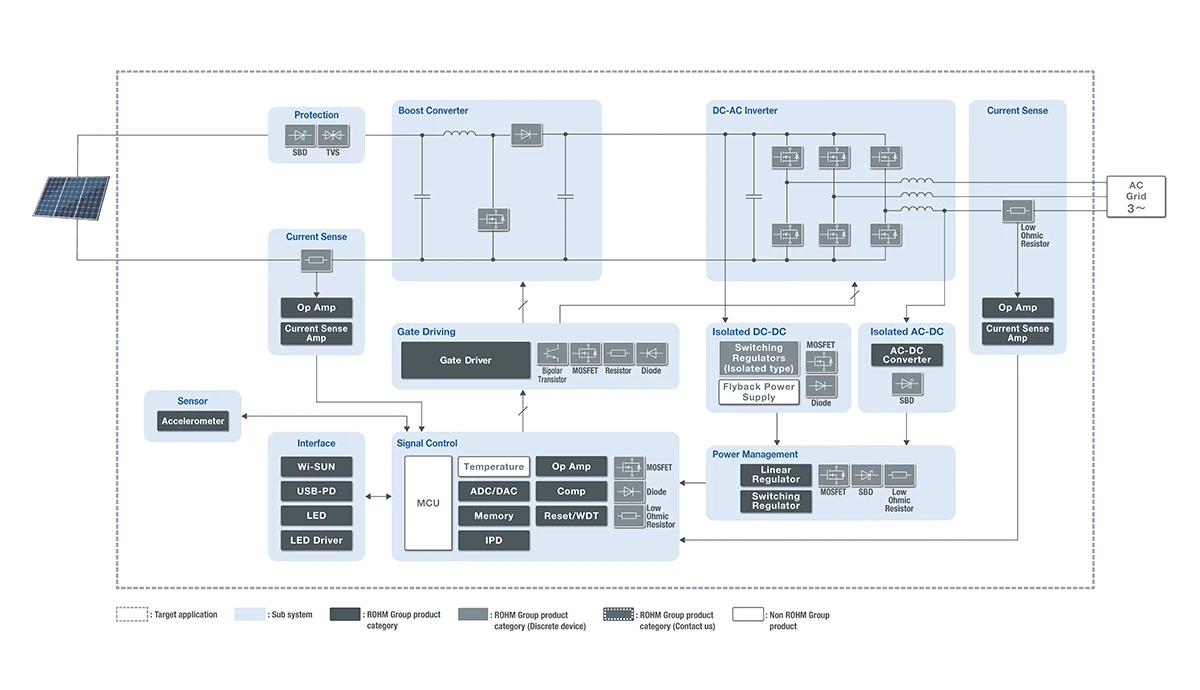

ROHM proposes power solutions centered on power semiconductors to efficiently transfer solar-generated electricity to the power grid. In configurations where unstable DC voltage from solar panels is boosted and converted into AC power with the required voltage and frequency via a DC-AC inverter, we offer a range of optimized components for each block that improves overall system performance.

support-content-nrg-pv-inverter

Topology Selection

When designing circuits, especially power circuits, it's essential to choose a circuit configuration that aligns with the required specifications, as the input/output voltages, power levels, and isolation needs will vary by application. Optimal component selection also depends on the topology. Using inappropriate components can lead to performance shortfalls, potentially requiring a complete redesign of the circuit. ROHM’s topology selection page helps users identify the most suitable devices for various circuit designs.

Reference Design

Reference Design

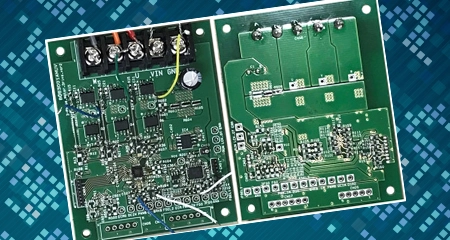

ROHM provides a system-level evaluation board (solution board) that combines ROHM's IC and discrete products. We have already solved not only the characteristics of individual products but also the problems that may occur when combining them to build a system, thus contributing significantly to the reduction of development time for our customers.

Design Model

Design Model

ROHM offers simulation models, including thermal models, PLECS models, and Ray files, for circuit and thermal simulations of discretes and ICs, including power devices.




ROHM Solution Simulator

ROHM Solution Simulator

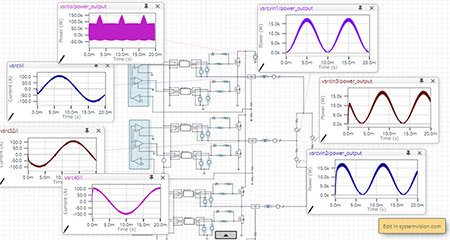

ROHM Solution Simulator is a new web-based electronic circuit simulation tool that can carry out a variety of simulations, from initial development that involves component selection and individual device verification to the system-level verification stage.
*MyROHM Login Required.

video-industry

Video

  • ROHM SiC Power Solutions

  • Flexible Lines

catalog-01

Catalog

Application Brochure for Industrial
Application Brochure for Industrial
Power Device Catalog
Power Device Catalog
Next Generation Op Amp Brochure
Next Generation Op Amp Brochure
DC-DC Converter Selection Guide
DC-DC Converter Selection Guide
