3Phase AC240V AC Servo

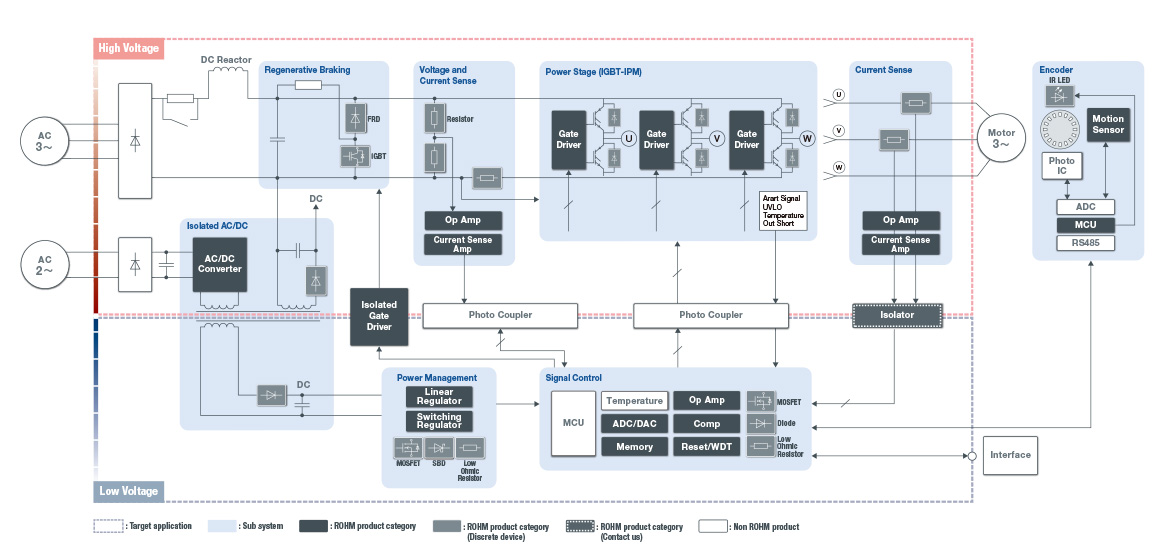

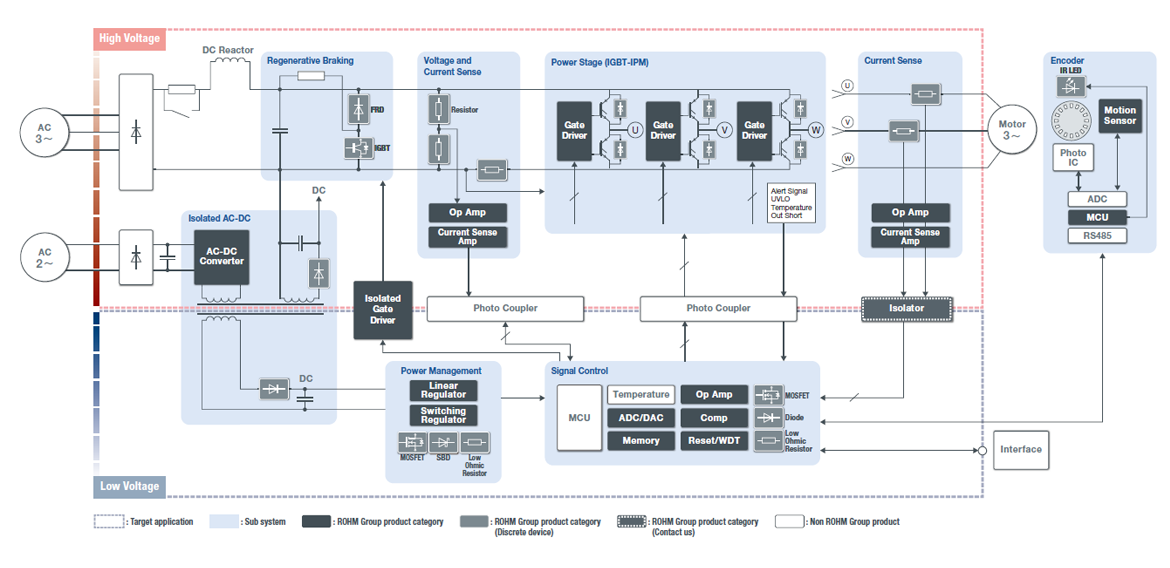

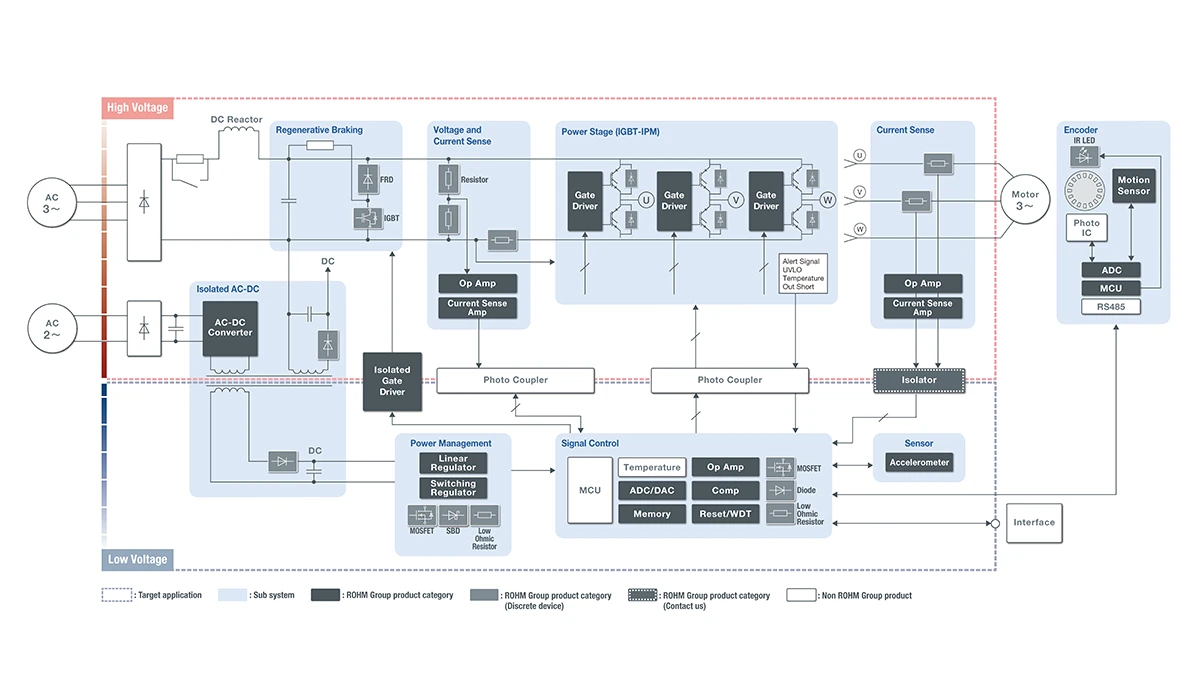

Block Diagram

Block Diagram

※Click to enlarge image.


Power Stage
  • IGBT IPM
  • IGBT
Regeneration Braking
  • IGBT
  • Fast Recovery Diodes
Gate Driver
  • Isolated Gate Drivers
  • IGBT/MOSFET High/Low Side Gate Drivers
Current Detection
  • Current Detection Resistors
  • Current Detection Amplifiers (Contact Us)
Isolated AC/DC
  • AC/DC Converters
  • Schottky Barrier Diodes
Encoder
  • MCU
  • Accelerometers
  • IR LEDs
Power Management
  • Switching Regulators
  • Linear Regulators
  • Schottky Barrier Diodes
  • MOSFETs
  • Resistors
Signal Control / General Purpose
  • EEPROMs
  • Operational Amplifiers
  • Comparators
  • RESET ICs
  • D/A Converters
  • MOSFETs
  • Diodes
  • Current Detection Resistors
  • Resistors
