Battery Backup Unit (BBU)
As the utilization of AI gathers momentum, high-density implementation and increases in power consumption of servers have entered a new stage. The most important challenge in designing servers is to deliver the maximum processing power within a limited rack space while balancing the stable operation and power savings of the entire system.
First, designing battery backup units (BBUs), which protect data in the event of a power supply failure, requires high-level battery management to maximize the performance of lithium-ion batteries. ROHM provides products such as remaining battery level monitoring ICs (fuel gauge ICs) that can assess even the state of health (SoH) of batteries highly precisely, contributing to downsizing and improving the reliability of the BBUs.
Furthermore, hot swap circuits that support the stable operation and ease of maintenance of servers require a high rating for the safe operation area (SOA) that can withstand large current loads. This requirement is especially strict for AI servers that use many GPUs. ROHM’s 100 V power MOSFETs combine a high SOA rating with low on-resistance, meeting these strict requirements and improving system robustness.
In addition to these solutions at a device level, ROHM provides a product portfolio that can support diversified power supply architectures from traditional 12 V/50 V systems to 400 V-class high-voltage direct-current (HVDC) power distribution racks.
Block Diagram

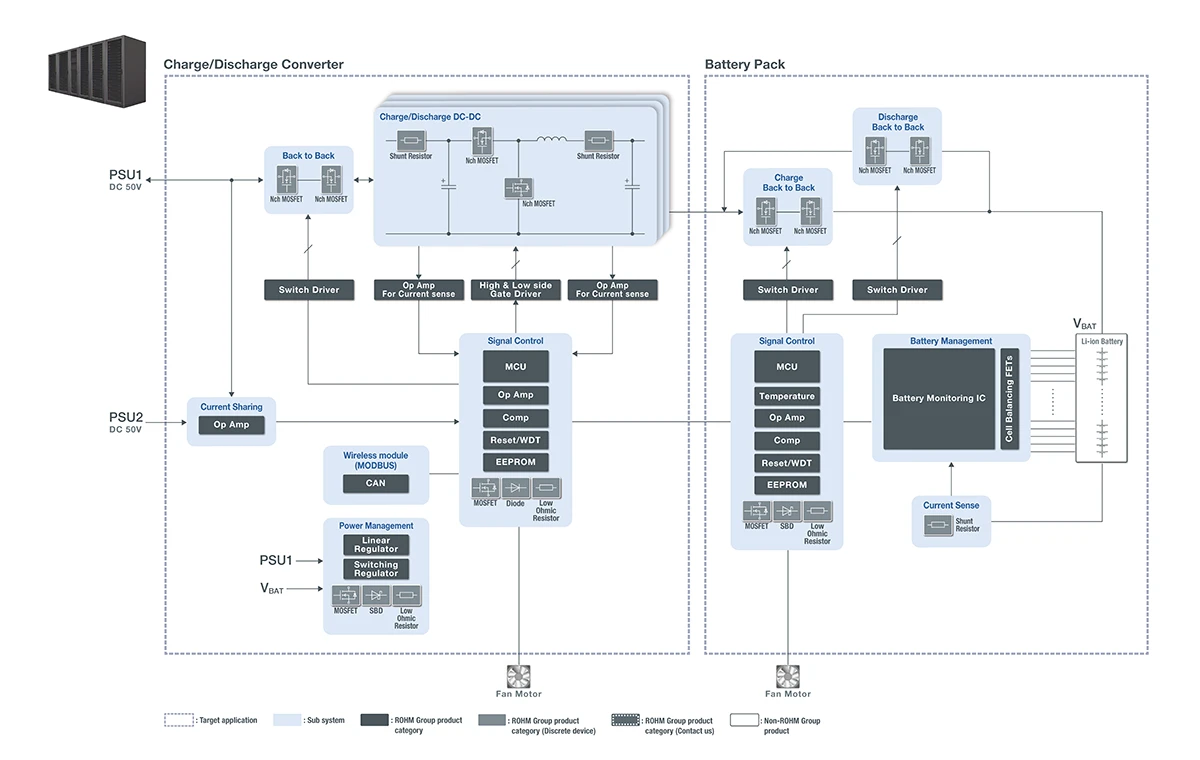

Battery Backup Unit 50V interface (ORV3)
*Click to enlarge image.

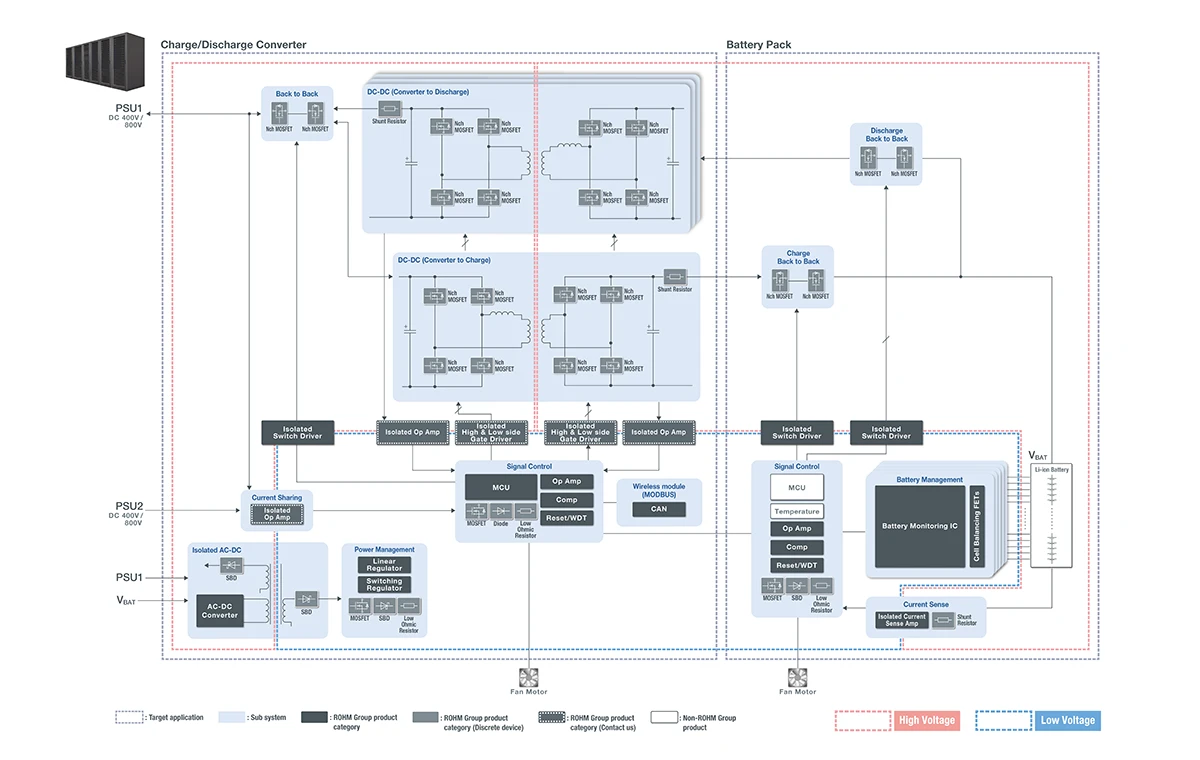

Battery Backup Unit 400V interface (HVDC side rack)
*Click to enlarge image.
Technical information
Topology Selection
When designing circuits, especially power circuits, it's essential to choose a circuit configuration that aligns with the required specifications, as the input/output voltages, power levels, and isolation needs will vary by application. Optimal component selection also depends on the topology. Using inappropriate components can lead to performance shortfalls, potentially requiring a complete redesign of the circuit. ROHM’s topology selection page helps users identify the most suitable devices for various circuit designs.
Reference Design
ROHM provides a system-level evaluation board (solution board) that combines ROHM's IC and discrete products. We have already solved not only the characteristics of individual products but also the problems that may occur when combining them to build a system, thus contributing significantly to the reduction of development time for our customers.
Design Model
ROHM offers simulation models, including thermal models, PLECS models, and Ray files, for circuit and thermal simulations of discretes and ICs, including power devices.
ROHM Solution Simulator
ROHM Solution Simulator is a new web-based electronic circuit simulation tool that can carry out a variety of simulations, from initial development that involves component selection and individual device verification to the system-level verification stage.
*MyROHM Login Required.
