Rectification Diode (REC)

Structure and Features

Structure Symbol Applications・ Characteristics
Diode Figure: Rectification Diode Structure Diode Figure: Rectification Diode Symbols
  • Used for rectification (i.e. primary side of the power supply block)
  • Mainly 1A-class and higher, high breakdown voltage (400V/600V)

Rectifier diodes, as their name implies, are designed to rectify common AC frequencies. Rectification primarily involves conversion from AC to DC and may include high voltages and currents. Conversion efficiency can vary greatly depending on the operating frequency and conditions. As such, different types are offered, including low VF(forward voltage), high-speed switching, and low-noise models.

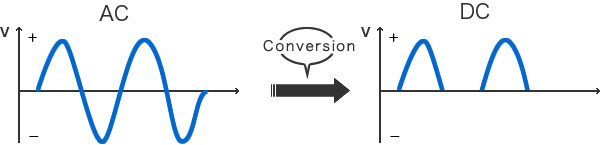

Diode Figure: Converting AC to DC
