Insulated Gate Bipolar Transistor
<IGBT Application Scope>

Power Semiconductor Applicable Range

Power semiconductors include modules that combine discrete components consisting of element units and their basic parts.
The same applies to IGBT (Insulated Gate Bipolar Transistor), comprised of devices and modules with optimal ranges for each.

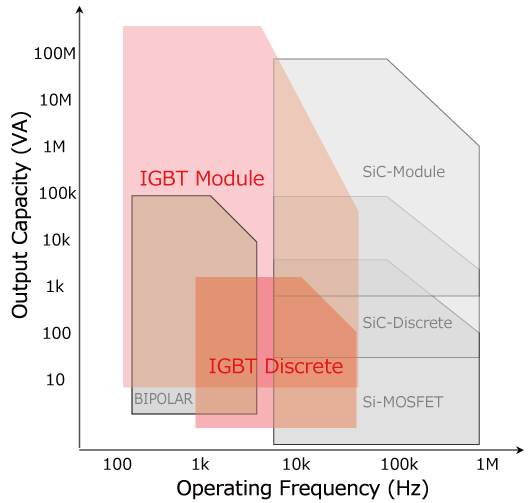

The following figure shows the range of applications for power semiconductors, primarily IGBT, with respect to switching (operating) frequency and output capacity.

[Applicable Range of Power Semiconductors] [Applicable Range of Power Semiconductors]
