PSR400ITQFJ2L00
10x5.2 (3921) size, 6W, 2mΩ, High Power Type Metal Plate Shunt Resistor (AEC-Q200 Qualified)
PSR400ITQFJ2L00
10x5.2 (3921) size, 6W, 2mΩ, High Power Type Metal Plate Shunt Resistor (AEC-Q200 Qualified)
PSR400 series is ideal for current detection under high current circuit.It is ideal for sets that require high power, such as in-vehicle, industrial equipment, and large household appliances. In addition to stable resistance values under overcurrent loads, these products are highly accurate and reliable, achieving excellent resistance temperature coefficient (TCR) even in the low resistance range.
Lineup
Product Detail
Specifications:
Automotive grade
Yes
Size[mm](inch)
10x5.2(3921)
Rated Power[W]
6, 4
Resistance Tolerance
F (±1%)
Resistance range[Ω]
2m
Temperature Coefficient[ppm/°C]
0～+75
Operating Temperature[°C]
-65 to 175
Type
For current sensing
Operating Temperature (Max.)[°C]
175
Common Standard
AEC-Q200 (Automotive Grade)
Features:
- High power max 15W
- Ultra low resistance range (0.1mΩ or more).
- Excellent TCR characteristic
- Convex structure
- ROHM resistors have obtained ISO9001 / IATF16949 certification.
- Corresponds to AEC-Q200.
Reference Design / Application Evaluation Kit
-

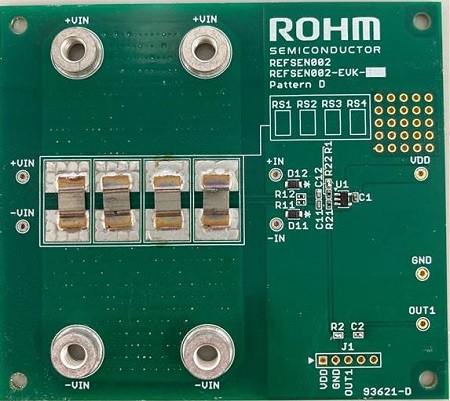

- Reference Design - REFSENS002
- Reference Board forLow-side Current Sensing Circuit
In the fields of automobiles and industrial equipment, low-side current sensing circuits are used for functions such as current (voltage) control, overcurrent limit, and remaining battery level detection. Shunt-resistor low-side current sensing circuits are the most general solution. The REFSENS002 is a shunt resistor and low offset operational amplifier current sensing reference design. Design data, including heat generation evaluations, is published on Web site, so please use it as a design reference to help reduce design man-hours.
