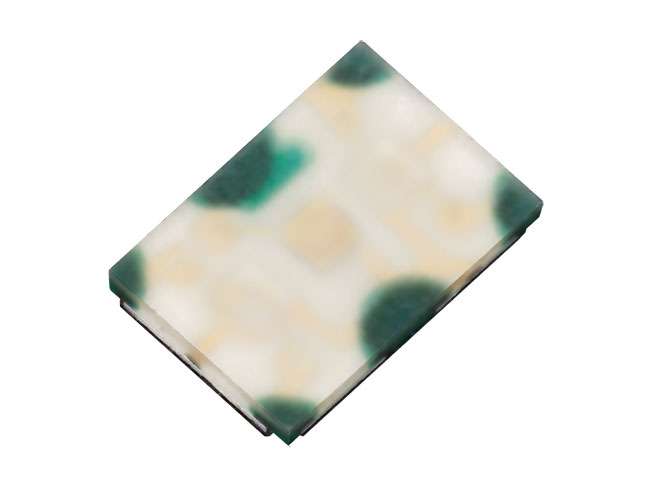

SMLP36RGB2W(R)
PICOLED™-RGB Series
Obsolete
SMLP36RGB2W(R)
PICOLED™-RGB Series
Production has already been terminated. Not available for sales.
Product Detail
Specifications:
Package Type
Triple Color / Mini-mold
LED Type
Standard
Application
Wearable, Amusement
Package size[mm]
1.5x1.0 (t=0.2)
Emitting color
Red / Green / Blue
Dominant wave-length λD(Multi)(Typ.)[nm]
624 / 527 / 470
Luminous Intensity(Multi)(Typ.)[mcd]
45 / 110 / 35
Number of Brightness Rank
12
Forward Voltage VF (Typ.) [V]
2.1 / 3.1 / 3.0
IF @ VF [mA]
5
Chip Structure
AIGaInP / InGaN
Power Dissipation [mW]
35
Operating Temperature[°C]
-40 to 85
Storage Temperature [°C]
-40 to 100
