MSL0402RGBU
Small and high Brightness RGB LED

ROHM's chip LED lineup consists of standard type, top-view type, side-view type and reverse-mount type.

Data Sheet Buy Sample
Data Sheet Buy Sample
  • Documents
  • Tools
  • Packaging & Quality
  • FAQs
  • Contact Us

Product Detail


Part Number | MSL0402RGBU1
Status | Recommended
Package | MSL0402
Unit Quantity | 3000
Minimum Package Quantity | 3000
Packing Type | Taping
RoHS | Yes

Specifications:

Package Type

Triple Color / Mini-mold

LED Type

Standard

Package size[mm]

1.8x1.6 (T-0.5)

Emitting color

Red / Green / Blue

Dominant wave-length λD(Multi)(Typ.)[nm]

624 / 527 / 470

Luminous Intensity(Multi)(Typ.)[mcd]

400 / 550 / 180

Forward Voltage VF (Typ.) [V]

2.1 / 3.5 / 3.3

IF @ VF [mA]

20

Chip Structure

AIGaInP / InGaN

Power Dissipation [mW]

78 / 120 / 114

Operating Temperature[°C]

-40 to 85

Features:

  • Small and high Brightness RGB LED
  • 1816 (0706) size

Supporting Information

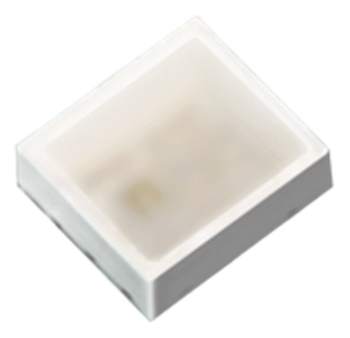

The World's Smallest*1 Reflector-Type RGB LED

Features

*1 ROHM November 2016 Survey

MSL0402RGBU
  • Wide color range and superior color mixing provide greater display flexibility
  • Sulfuration Resistance + Longer Life + High Reliability
  • High ESD resistance eliminates the need for a Zener diode

Lineup

Part No. Absolute Maximum Ratings Electrical-Optical Characteristics
Per-
missible
Loss*1*2
PD(mW)		 Forward
Current
IF(mA)		 Peak
Forward
Current
IFP(mA)
<Duty
1/10,
1kHz>		 Reverse
Voltage
VR(V)		 Opera-
ting
Temp.
Topr
(°C)		 Storage
Temp.
Tstg
(°C)		 Forward
Voltage
VF		 Reverse
Current
IR		 Emission
Wavelength
λD		 Luminosity
Typ.
(V)		 IF
(mA)		 Max.
(µA)		 V
(V)		 Typ.
(nm)		 IF
(mA)		 Min
(mcd)		 Typ.
(mcd)		 IF
(mA)
■ NEW
MSL0402RGBU*3		 78 30 100 5 -40 to
+85		 -40 to
+100		 2.1 20 100 5 624 20 220 400 20
■ 120 3.5 527 360 550
■ 114 3.3 470 90 180
■ SMLVN6RGB1W*4 400 50 2.1 10 624 450 700
■ 40 3.3 527 710 1200
■ 470 220 400
■ SMLVN6RGB1U*3 50 2.1 624 450 700
■ 40 3.3 527 710 1200
■ 470 220 400
■ MSL0104RGBW*4 50 2.1 624 450 700
■ 40 3.3 527 710 1200
■ 3.2 470 220 400
■ MSL0104RGBU*3 50 2.1 624 450 700
■ 40 3.3 527 710 1200
■ 3.2 470 220 400

*1 : Total permissible loss when lighting all 3 LEDs
(up to 30% of their respective absolute maximum ratings when lit up at the same time) DC drive.
*2 : 50mm×50mm, FR4 board (t=1.6mm), Copper foil: t=0.07mm.
*3 : Silicone resin. *4 : Epoxy resin.

The World's Smallest*1 Reflector-Type RGB LED

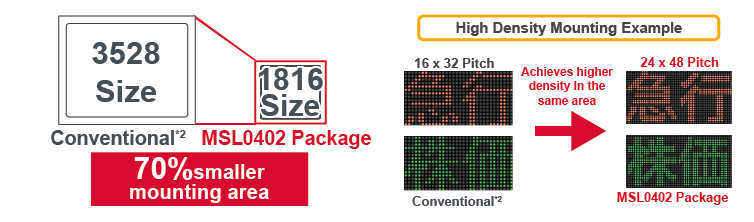

Reflector-Type RGB LED

Reducing mounting area by 70% compared with conventional products allows more LEDs to be mounted in the same footprint, leading to significantly greater resolution and clearer display.
Enables high resolution character display.

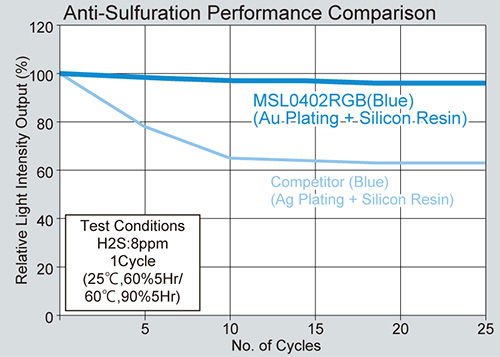

Sulfuration Resistance + Longer Life + High Reliability

40％ Brightness

Improved anti-sulfuration performance (i.e. against cigarette smoke, exhaust gases) is provided along with longer life, enabling use in automotive and industrial applications.

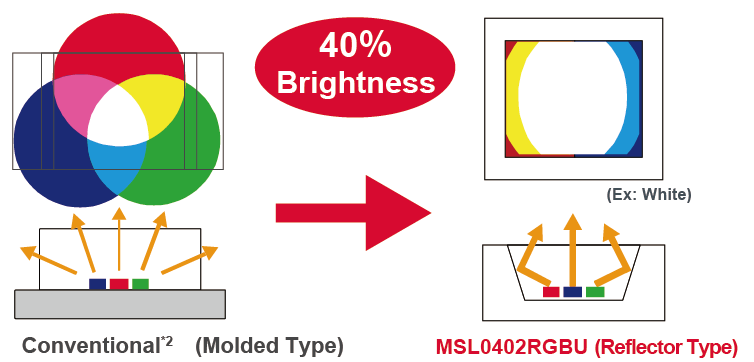

High Brightness & Excellent Color Mixing

従来品とSML-D15シリーズの比較

High-density element mounting makes it possible to develop a compact reflector-type LED in the 1816 size. As a result, brightness is increased by 40% over conventional* molded types. In addition, less light leakage in the transverse direction improves color mixing characteristics along with luminous intensity.
* Conventional Product: SMLVN6RGB1 Series

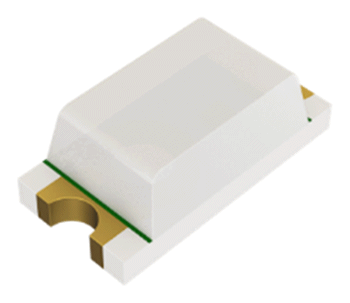

High Brightness 1608 Size Single Rank Chip LEDs SML-D15 Series

Features

MSL0402RGBU
  • Single brightness rank Minimizes brightness variations
  • Broad operating range -40°C to +100°C
  • 3× brighter
  • AEC-Q101 qualified

Lineup

Part No. Absolute Maximum Ratings (Ta＝25°C) Electrical-Optical Characteristics (Ta＝25°C)
Power
Dissipation
PD(mW)		 Forward
Current
IF(mA)		 Peak
Forward
Current
IFP(mA)		 Reverse
Voltage
VR(V)		 Operating
Temp.Topr
(°C)		 Storage
Temp.
Tstg
(°C)		 Forward
Voltage
VF		 Reverse
Current
IR		 Emission
Wavelength
λD		 Luminosity
Iv
Typ.
(V)		 IF
(mA)		 Max.
(µA)		 V
(V)		 Typ.
(nm)		 IF
(mA)		 Min
(mcd)		 Typ.
(mcd)		 IF
(mA)
■ SML-D15VW 84 35 100* 5 -40 to
+100		 -40 to
+100		 2.0 20 10 5 630 20 71 112 20
■ SML-D15UW 620 90 140
■ SML-D15U2W 615 112 180
■ SML-D15DW 605 180 280
■ SML-D15YW 87 2.1 590
■ SML-D15MW 571 56 90

(): Reference value
Note: Automotive-grade products are designated with a 'C' in the part number
*Duty≦1/10, 1kHz

Single Brightness Rank Standard

Single Brightness Rank Standard

ROHM's comprehensive manufacturing process (from the device production stage) minimizes brightness variations, allowing the SML-D15 series to meet the high brightness requirements of the automotive sector.

-40°C to +100°C Operating Temp. Range

Wide operating temp. range meets automotive requirements

Up to 3× Brighter

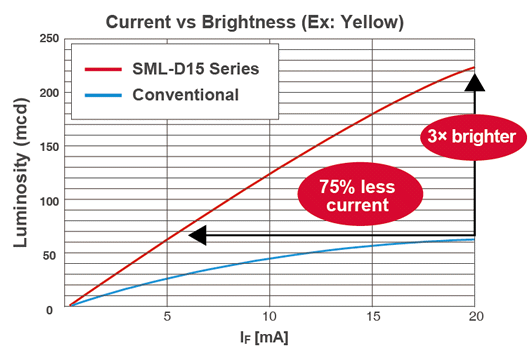

Current vs Brightness(Ex: Yellow)

3× higher brightness vs conventional products makes it possible to decrease power consumption by reducing IF

*Conventional product: SML-D12x8W Series
