SMLD12BN1W

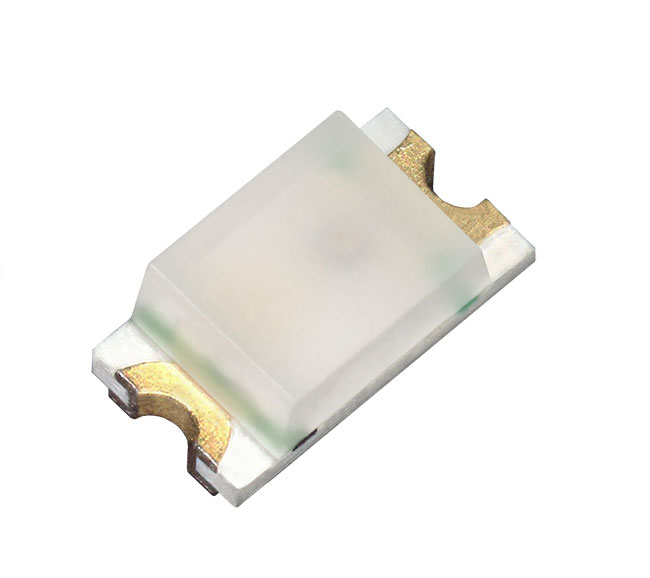

Long Life Type Mini-mold Chip LED

SMLD12BN1W has a long life and the residual luminous rate exceeds 90% even after 1000 hours (under Ta=85℃,IF=20mA).

Data Sheet Buy Sample
Data Sheet Buy Sample
  • Documents
  • Tools
  • Packaging & Quality
  • FAQs
  • Contact Us

Product Detail


Part Number | SMLD12BN1WT86
Status | Recommended
Package | SML-D12
Unit Quantity | 3000
Minimum Package Quantity | 3000
Packing Type | Taping
RoHS | Yes

Specifications:

Package Type

Mini-mold

LED Type

Long Life

Package size[mm]

1.6x0.8 (t=0.55)

Emitting color

Blue

Luminous Intensity(Single)(Typ.)[mcd]

40.0

Number of Brightness Rank

3

Dominant wave-length λD(Single)(Typ.)[nm]

470.0

Forward Voltage VF (Typ.) [V]

2.9

IF @ VF [mA]

5

Chip Structure

InGaN

Power Dissipation [mW]

66

Operating Temperature[°C]

-40 to +100

Storage Temperature [°C]

-40 to +100

Features:

  • Long life exceeding 90% residual luminous rate even after 1,000hrs (Ta=85℃,IF=20mA)
  • 1608 (0603) size small package
