Schottky Barrier Diodes

[NEW]200V Ultra-low IR Schottky Barrier Diodes RBxx8BM/NS200



The RBxx8BM/NS200 expands on the RBxx8 lineup of SBDs enabling high temperature operation that have already been proven in the automotive market in Japan. This new series offers ultra-low leakage current (IR) characteristics to achieve high withstand voltage of 200V. Replacing Fast Recovery Diodes (FRD) and rectifier diodes typically used in vehicle systems with ROHM's new SBDs make it possible to improve forward voltage (VF) characteristics significantly (11% lower than conventional FRDs). This reduces application power losses and allows smaller package designs by reducing heat generation, contributing to greater space savings.

NEWS

ROHM’s SBD Lineup

ROHM’s SBD Lineup
	# # # #

[NEW] RBxx8 Series

Features

  • Low IR enables stable operation at high temperatures
  • Low VF contributes to reduced power consumption
  • Compact package design contributes to greater miniaturization
  • AEC-Q101 qualified, ensuring automotive-grade reliability

Applications

  • Automotive systems (i.e. engines, DC/DC converters, lamps, etc.
  • Industrial inverters
  • Various power supplies

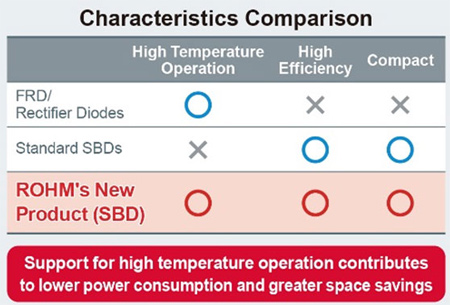

Characteristics Comparison

Packages

TO-252

DPAK

TO-252 DPAK

Size:10066[3926]

TO-263S

D2PAK

TO-263S D2PAK

Size:131101[5240]

Size:mm[]inches

Lineup

RBQ Series

Features

  • Low IR ensure stable operation at high temperatures
  • Low IR and medium VF characteristics ideal for switching power supplies
  • Broad lineup of 45 models offered in 3 withstand voltages: VRM=45V/65V/100V (10-30A)

Applications

  • Secondary rectification in AC-DC/DC/DC circuits
  • Freewheel circuits
  • Reverse connection protection

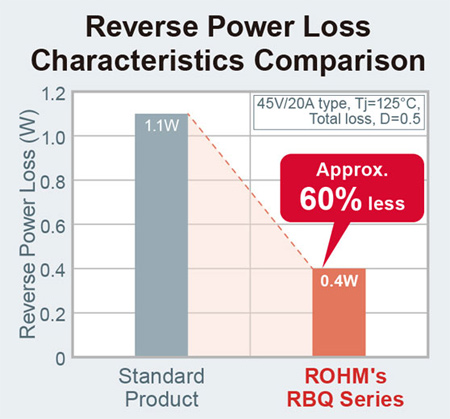

Reverse Power Loss Characteristics Comparison

Packages

TO-252

DPAK

TO-252 DPAK

Size:10066[3926]

TO-263S

D2PAK

TO-263S D2PAK

Size:131101[5240]

TO-220FN

TO-220FN

Size:190100[7539]

Under development
TO-277

TO-277

Size:6443[2517]

Size:mm[]inches

Lineup

RBR Series

Features

  • Low VF reduces package size
  • Broad lineup of 134 models offered in 3 withstand voltages: VRM=30V/40V/60V (1-40A)

Applications

  • Secondary rectification in AC-DC/DC/DC circuits
  • Freewheel circuits
  • Reverse connection protection

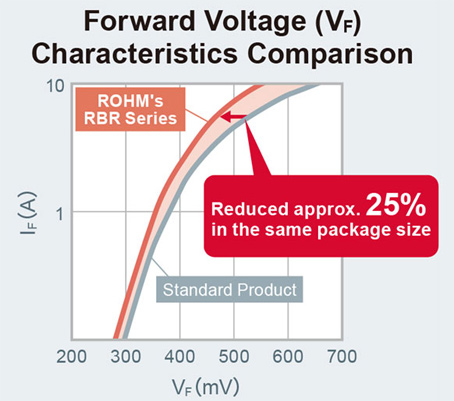

Forward Voltage (VF) Characteristics Comparison

Packages

PMDE

PMDE

Size:2513[1005]

SOD-123FL

PMDU/SC-109B

SOD-123FL PMDU/SC-109B

Size:3516[1406]

SOD-128

PMDTM

SOD-128 PMDTM

Size:4725[1910]

DO-214AC

PMDS/SMA

DO-214AC PMDS/SMA

Size:5026[2010]

Under development
TO-277

TO-277

Size:6443[2517]

TO-252

DPAK

TO-252 DPAK

Size:10066[3926]

TO-263S

D2PAK

TO-263S D2PAK

Size:131101[5240]

TO-220FN

TO-220FN

Size:190100[7539]

Size:mm [] inches

Lineup

RBS Series

Features

  • High accuracy processes increase efficiency
  • Element optimization and low IR result in ultra-low VF
  • Broad lineup includes medium power package types

Applications

  • Ultra-low loss rectification
  • Reverse connection protection
  • External LED driver circuits (i.e. LCD backlighting)

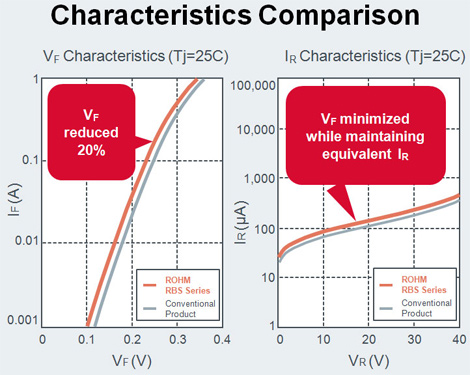

Characteristics comparison

Packages

SOD-123FL

PMDU/SC-109B

SOD-123FL PMDU/SC-109B

Size:3516[1406]

SOD-128

PMDTM

SOD-128 PMDTM

Size:4725[1910]



Size:mm [] inches

Lineup
