ML63Q2554-NNNGD(Tray)
Solist-AI™, 32-bit Microcontroller (Arm® Cortex®-M0+)
ML63Q2554-NNNGD(Tray)
Solist-AI™, 32-bit Microcontroller (Arm® Cortex®-M0+)
The ML63Q2554 is a MCU equipped with a 32-bit Arm® Cortex®-M0+ processor and an AI accelerator, "AxlCORE-ODL". It also integrates a variety of peripheral circuits, including CAN FD controller, 3-phase motor control PWM, two A/D converters, analog comparators, I²C, SPI, and UART. With a low power consumption of approximately 40mW during AI processing, this makes it an optimal solution for predictive failure detection in industrial equipment and home appliances.
Among the lineup, this product features a 128KByte ROM capacity, a 64pin package.
Product Detail
Specifications:
Operating Voltage (Min.)[V]
2.3
Operating Voltage (Max.)[V]
5.5
CPU Core
32bit Arm®Cortex®-M0+
ROM type
Flash
ROM Capacity [Byte]
128K
Data Flash Capacity [Byte]
8K
RAM Capacity [Byte]
16K
Input/Output
49
Operating Frequency (Max.) High Speed
48MHz(PLL oscillation)/ 40MHz(Crystal oscillation)
Operating Frequency (Max.) Low Speed
32.768kHz(Internal RC oscillation/Crystal oscillation)
Minimum Instruction Execution Time
20.83ns@48MHz/ 30.5μs@32.768kHz
Current Consumption (Typ.@HALT)
3.5μA(Internal RC oscillation)
Operating Temperature (Min.)[°C]
-40
Operating Temperature (Max.)[°C]
105
AI Accelerator
AxlCORE-ODL
1kHz Timer
1
16bit Timer
6
16bit Multi Functions Timer
2(TMR, PWM, Capture)
WDT
1
ADC (method)
12bit×12ch, 2unit (SA type)
I2C
Master/Slave×1
SSIO
2
UART
Full Duplex×4
Supply Voltage Detection
VLS×1
CAN
1
External Interrupt Sources
8
Others
3 phase motor control PWM×1,
Comparator×3, DMA
Halogen Free Support ?
Yes
Industrial Grade ?
Yes
Automotive Grade
No
Development Support
-
- Reference Board
- RB-D63Q2557TB64
- Supply Status
- Recommended
- Board size (mm)
- W56 × D94 × H12
- Supported MCUs
- ML63Q2554
- ML63Q2557
- Structure
- ML63Q2557 (64PIN TQFP) Reference Board
-
- Starter kit
- SK-AD06-D63Q2557TB
- Supply Status
- Recommended
- Supported MCUs
- ML63Q2500 Group
- Structure
- RB-D63Q2557TB64 (Reference board equipped with Solist-AI™ MCU ML63Q2557)
- KXTJ3-1057-EVK-001 (Acceleration sensor board)
- Multi-function USB conversion module
- Interface cable, USB cable
- Notes

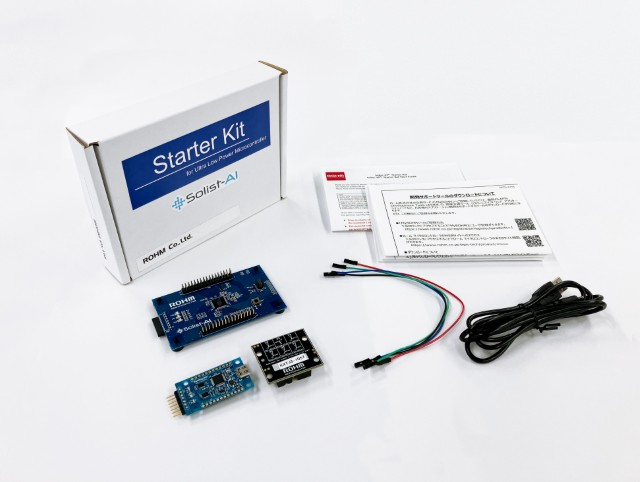

- This starter kit is an evaluation kit that allows you to easily verify the operation of an anomaly detection sample program using an accelerometer, pre-installed on the Solist-AI™ MCU. Based on the data acquired from the accelerometer, the Solist-AI™ MCU calculates the anomaly level in real time, and the results can be monitored using Solist-AI™ Scope.
* A separate debug adapter is required for software development or for rewriting the program when using this starter kit.
-
- Emulator

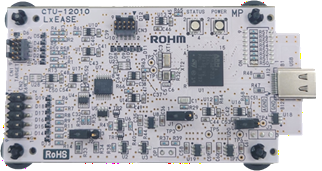

- LxEASE™
- Supply Status
- Recommended
- Board size (mm)
- W45 × D90 × H15.3
- Supported MCUs
- ROHM microcontrollers equipped with Arm® Cortex®-M cores
- Structure
- LxEASE™
- LxEASE™ Interface cable
- USB cable
-
- Isolator Board
- LxEASE™ Isolator
- Supply Status
- Recommended
- Board size (mm)
- W45 × D50 × H24
- Supported MCUs
- ROHM microcontrollers equipped with Arm® Cortex®-M cores
- Structure
- LxEASE™ Isolator
- Notes
- Use this product when the VSS potential between LxEASE™ and the microcontroller does not match, or when debugging in an environment that is susceptible to power supply noise.
