[Adoption Example] HIOKI E.E. Corp. Impulse Winding Tester

ROHM SiC MOSFETs provide high voltage impulse output in a compact package

Adoption Background

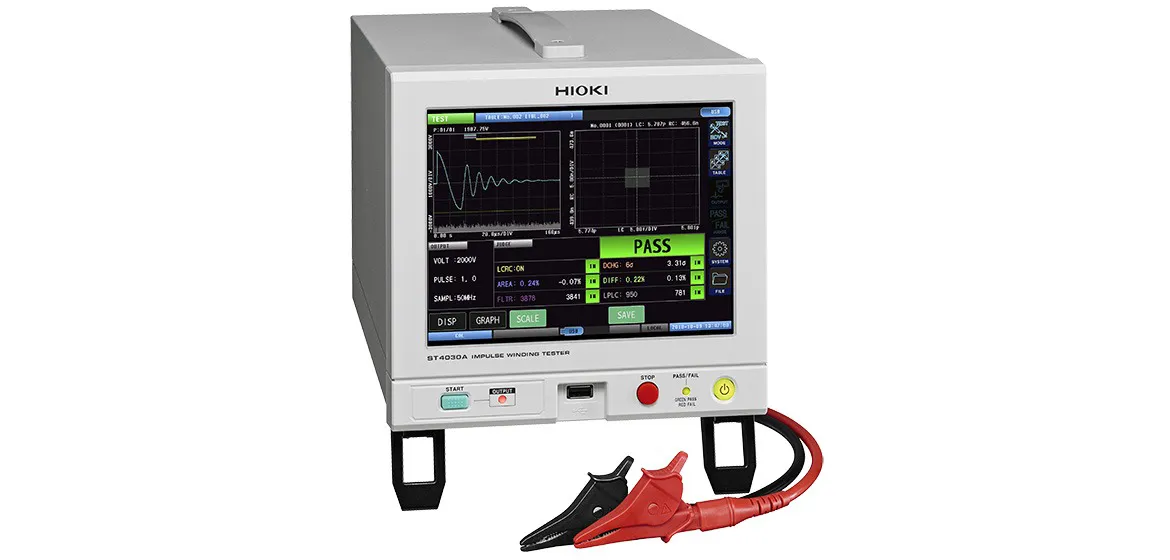

Hioki's impulse winding tester is a measurement instrument that can test for layer shorts (inductor deterioration) between windings that occur in the inductors (coils) of motors used in industrial and automotive equipment. Quantification of the response waveforms makes it possible to easily and accurately make pass/fail determinations. This allows accumulated data from each fault to be fed back to upstream processes to predict conditions that could lead to non-compliant winding and contribute to the prevention of future defects. In the development of the device, thyristors were initially considered for the output circuit of the impulse (momentary high voltage) generator block, but achieving the high withstand voltages and currents needed posed a challenge due to size constraints. Therefore, attention was focused on SiC MOSFETs due to their compact size and ability to handle large voltages and currents. ROHM SiC MOSFETs were proposed, which matched the specifications, after which a sample request was issued. The samples were provided just in time for evaluation, and the results were favorable, which led to their adoption.

<Customer Feedback>

Development Manager, HIOKI E.E. Corp.

Initially we considered thyristors, but since many impulse testers use thyristors, we opted for SiC MOSFETs to differentiate our product. ROHM SiC MOSFETs support high withstand voltages and currents while also contributing to circuit miniaturization. At the same time, the drive circuit can be simplified compared to thyristor designs, leading to a reduction in the number of components and man-hours.

Products Used

• SiC MOSFETs

Related Pages

• SiC Power Devices

About HIOKI E.E. Corp.

HIOKI E.E. Corp.
Website：https://www.hioki.com/

Hioki provides electrical measurement solutions for various fields, including automotive, electronic components, environmental/new energy, and infrastructure. Electrical measurement instruments, often referred to as the mother tools of the industry, are essential in all aspects of R&D, production lines, and maintenance services. We contribute to the security and development of society by promoting the safe and effective use of energy by our customers through reliable technologies and unique innovations cultivated over our 87-year history in electrical measurement. Speedy collaboration between our headquarters in Japan (which consolidates development, production, and management functions), domestic sales branches, and 10 group sales companies across Asia, America, and Europe allows us to provide timely solutions to customers worldwide.
