Real-Time Debugger RapidScope™

Capable of displaying waveforms in real time without interrupting CPU operation

RapidScope™ is a data monitoring tool for debugging Matisse firmware. Graphical real-time monitoring of IC status is possible without affecting the firmware running on Matisse. Trigger and measurement functions are also included that enable use like an oscilloscope. RapidScope™ can be used by connecting the matiseye™-adapter pro debugging adapter for Matisse.

RapidScope™

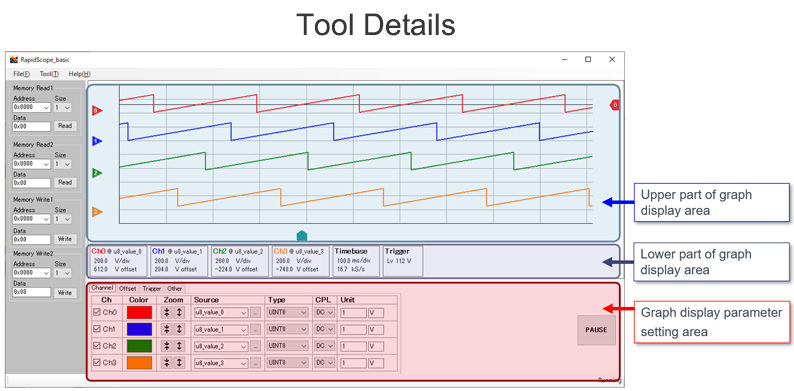

Tools Screen

Tools Screen

Feature: non-break real-time debugger

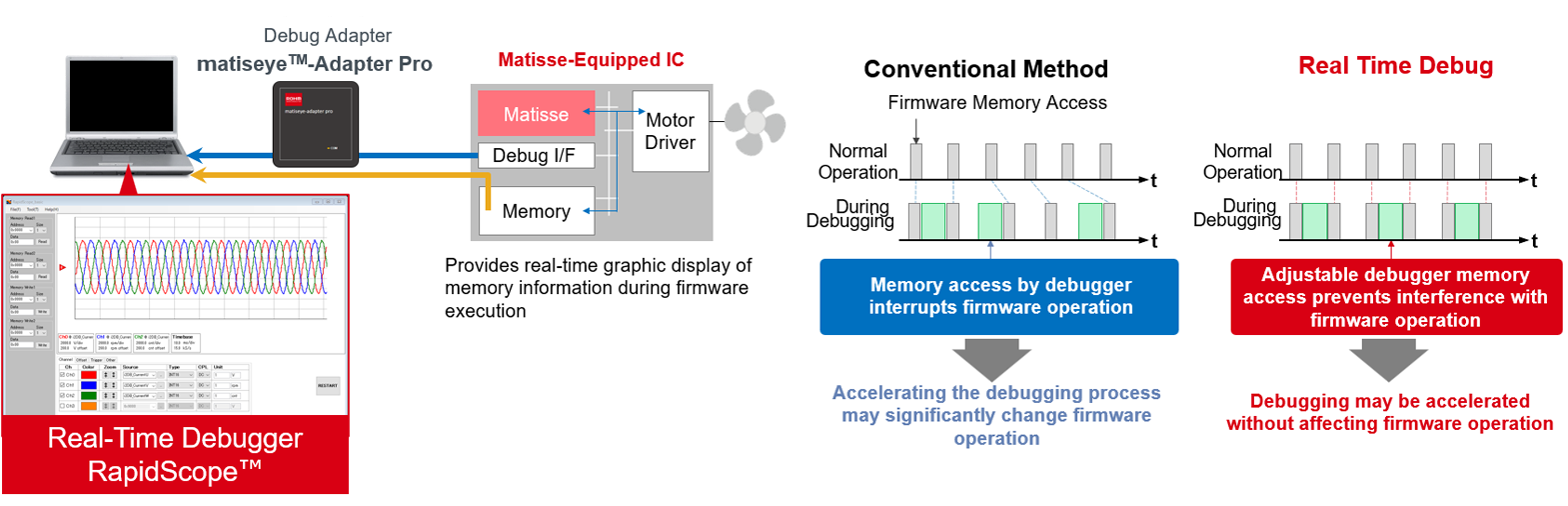

Real-time debugging is enabled without altering the operation of the firmware being debugged by adjusting the memory access of the debugger.
What's more, increasing the memory access speed of the debugger will not affect firmware operation.

Specifications

  • Equipped with basic oscilloscope functions (zoom in/out, trigger/measurement functions, roll mode)
  • Enables the display of up to 8 channels of waveforms
  • Capable of graphically displaying memory values and memory-mapped variables at specified addresses
  • Reading/writing memory values at specified addresses is possible
  • Automatic parameter saving function allows settings to be automatically applied at next startup
  • Equipped with a CSV data output function and screenshot function for saving waveform data

Operating Environment

OS: Microsoft® Windows 7 32/64 bit, Windows 10 32/64 bit

CPU: Intel® Core™ Series or equivalent performance

Memory: Equipped with 2GB or more

HDD: 100MB or more free space

.NetFramework: Version 4.7.2

Display Resolution: 1280x720 or higher

Download

Name Date Updated Download
RapidScope™ installer ver.1.0.1.0 2024/4/22

Documentation

Name Date Updated Download
RapidScope™ User's Guide Rev.001 2024/4/22

Related Software

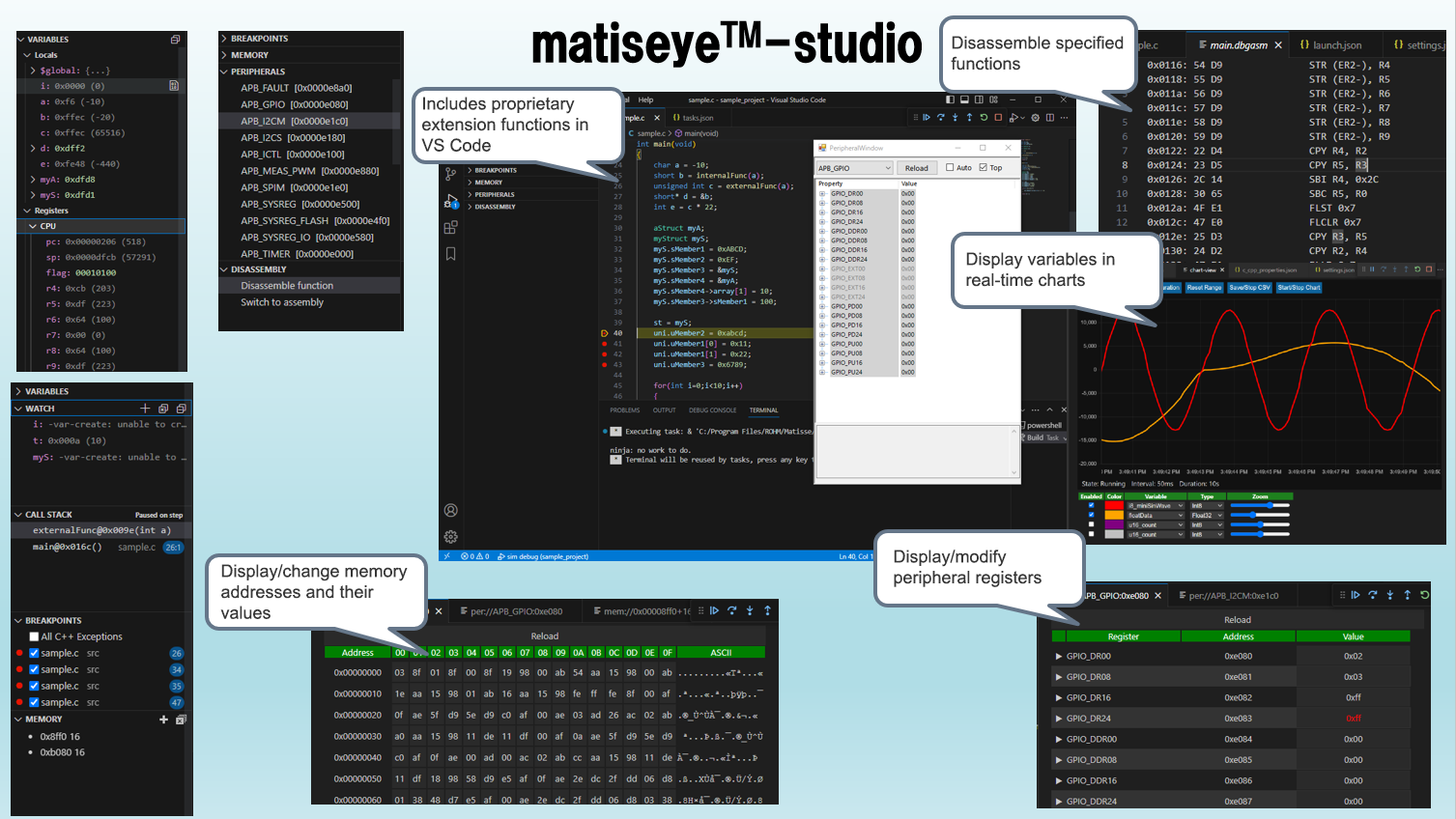

matiseye™-studio is an integrated development environment (IDE) for Matisse written in C that incorporates ROHM’s proprietary extension functions into Visual Studio Code (VS Code), an open-source code editor developed by Microsoft® . matiseye™-studio includes debugging capabilities such as memory monitoring, peripheral register management, real-time variable watching, and disassembly, providing robust support for customer software development.

Related Hardware

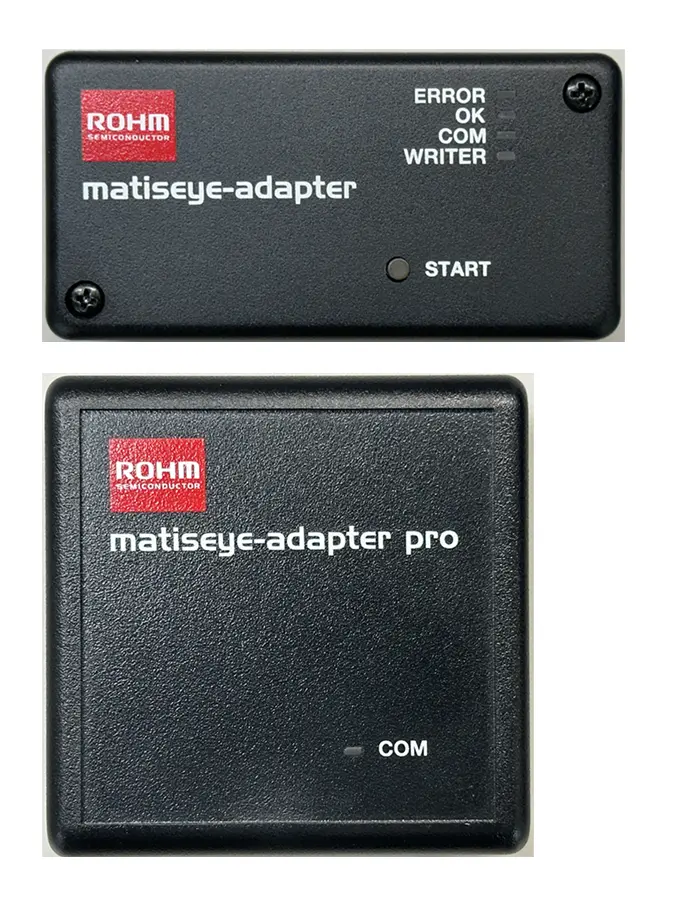

matiseye™-adapter/pro is a debug adapter that enables software debugging and writing to Matisse-equipped ICs. It supports real-time debugging, enabling debugging without interfering with CPU operation.
