Debug Adapter matiseye™-adapter/pro

Enables not only debugging and software writing, but also observation of the IC’s operating state in real time.

matiseye™-adapter/pro is a debug adapter that allows for software debugging and writing to Matisse-equipped ICs. Operates on USB power while providing a rich development environment when combined with matiseye™-studio. matiseye™-adapter supports standalone software writing functionality without the need for a PC. In addition to the functions of matiseye™-adapter, matiseye™-adapter pro enables real-time debugging without interfering with CPU operation while also providing a graphical display of the IC’s internal operating status when used in conjunction with real-time debugger RapidScope™.

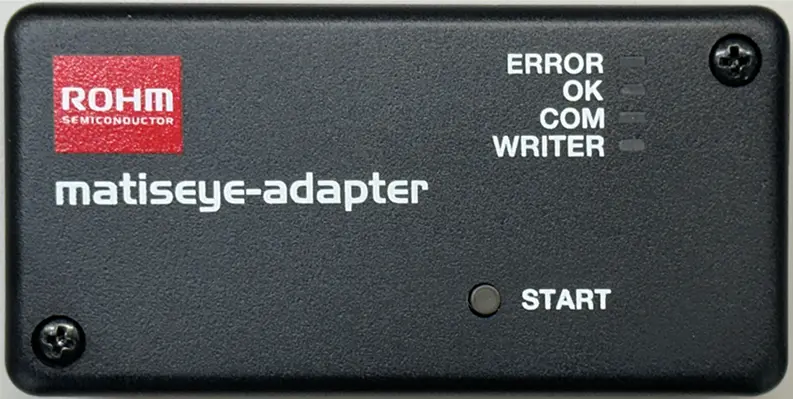

matiseye™-adapter

Features

  • Software debugging via dedicated communication I/F with Matisse-equipped IC (max. operating frequency: 1MHz)
  • Writing software to Matisse ICs
  • Equipped with LEDs to show operating status
  • USB bus power operation
  • Achieves standalone software writing functionality without the need for a PC
  • Built-in button for software writing
  • Internal firmware update function
  • Optional matiseye™-isolator (under development) provides isolation between the debug adapter and target

Product Specifications

  • Power Supply: 5V bus power (supplied via Micro-USB B port)
  • Debug Interface Operating Frequency: 1MHz (max.)
  • Debug Interface I/O Voltage: 3.3V (5V tolerant)
  • LEDs: 4 (ERROR/OK/COM/WRITER)
  • Terminals: Micro-USB B port ・ 10pin connector for debug I/F ・ Push switch
  • Dimensions: 40.3mm x 20mm x 80.3mm (W x H x D)
  • Weight: 39g
  • Accessories: 1.27mm pitch flat cable / USB cable

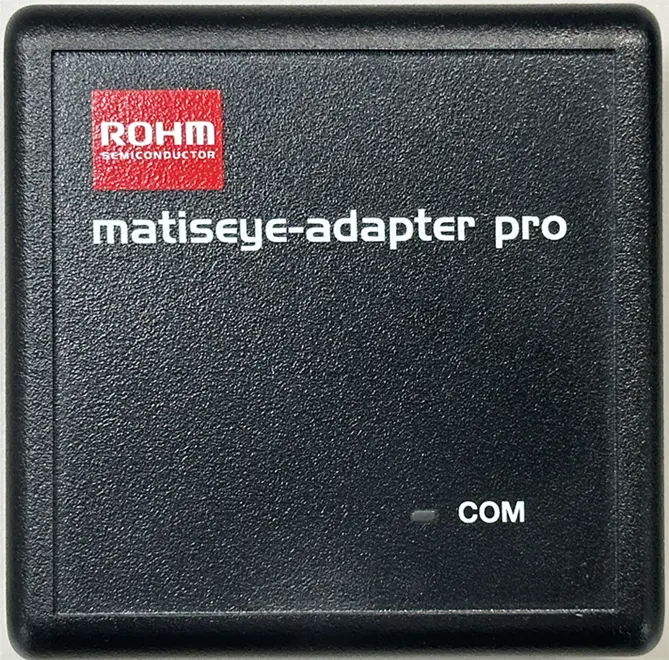

matiseye™-adapter pro

Features

  • Faster software debugging via dedicated communicaton I/F (max. prerating frequency: 12.5MHz)
  • Real-time debugging function enables debugging without interrupting CPU operation
  • Equipped with LEDs to show operating status
  • USB bus power operation
  • Graphically displays IC operating status using RapidScope™
  • Internal firmware update function
  • Optional matiseye™-isolator (under development) provides isolation between the debug adapter and target

Product Specifications

  • Power Supply: 5V bus power (supplied via Micro-USB B port)
  • Debug Interface Operating Frequency: 12.5MHz (max.)
  • Debug Interface IO Voltage: 3.3V (*up to 5V with optional matiseye™-isolator)
  • LED: 1 (COM)
  • Terminals: Micro-USB B port ・ 10pin connector for debug I/F
  • Dimensions: 66.5mm x 28mm x 66.5mm (W x H x D)
  • Weight: 39g
  • Accessories: 1.27mm pitch flat cable / USB cable

Debug Adapter List

Item matiseye™-adapter matiseye™-adapter Pro
Debug Execution Control
Memory and Breakpoint
debug I/F Max. Operating Frequency 1MHz 25MHz
debug I/F IO Voltage 3.3V-5V (5V tolerant) 3.3V (*)
Functions Status indicator LEDs
Standalone firmware writing
RapidScope™integration
Power Supply USB bus power
Connection pins debug IF 10pin connector
Options Compatible with matiseye™-isolator
  • *Supports up to 5V when using the optional matiseye™-isolator

Documentation

Name Date Updated Download
matiseye™-adapter User's Guide Rev.001 2024/4/22
matiseye™-adapter pro User's Guide Rev.001 2024/4/22

Related Software

matiseye™-studio is an integrated development environment (IDE) that incorporates ROHM's proprietary extensions into Microsoft® Visual Studio Code. Features include debugging capabilities such as memory monitoring, peripheral register management, real-time variable watching, and disassembly, providing robust support for customer software development.

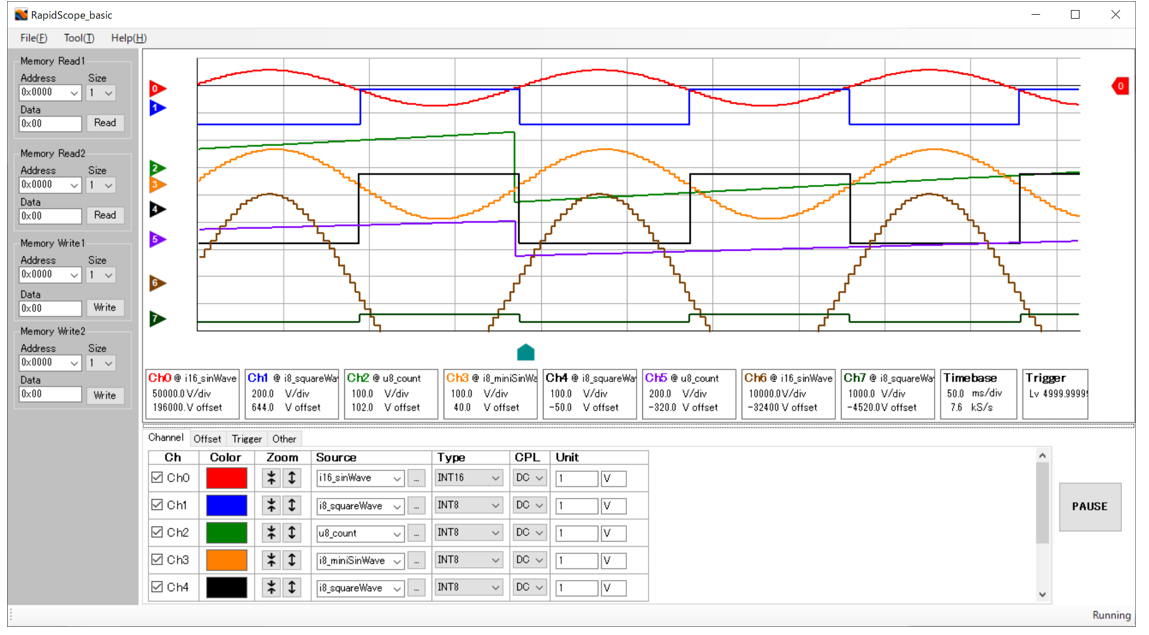

RapidScope™ is a data monitoring tool for debugging Matisse firmware. Graphical real-time monitoring is possible without affecting the firmware running on Matisse.

  • *RapidScope™ requires matiseye™-adapter pro to use.

Support

For inquiries regarding Matisse products, please contact us (see below).
