BM2SCQ124T-LBZ
Quasi-resonant AC/DC Converter with Built-in 1700 V SiC-MOSFET

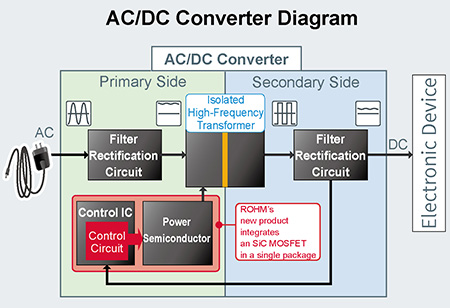

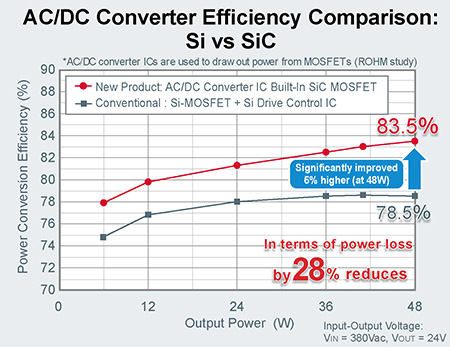

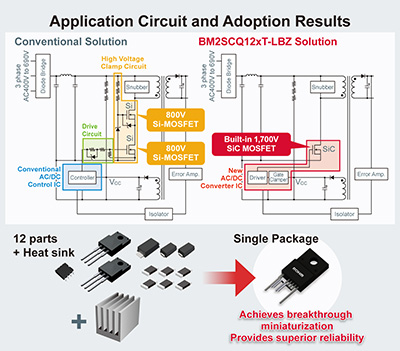

BM2SCQ124T-LBZ is a quasi-resonant AC/DC converter that provides an optimum system for all products which has an electrical outlet. Quasi-resonant operation enables soft switching and helps to keep the EMI low. This IC can be designed easily because it includes the 1700 V/4 A SiC (Silicon-Carbide) MOSFET. Design with a high degree of flexibility is achieved with current detection resistors as external devices. The burst operation reduces an input power at light load. It includes various protection functions, such as soft start function, burst operation, over current limiter per cycle, over-voltage protection function, overload protection function.

You can choose from a variety of power and topology evaluation boards.

Product Detail


Part Number | BM2SCQ124T-LBZ
Status | Recommended
Package | TO220-6M
Unit Quantity | 238
Minimum Package Quantity | 34
Packing Type | Tube
RoHS | Yes

Specifications:

FB OLP

Latch

ZT OVP

Latch

BR UVLO

No

External LATCH Function

No

AC Monitor Function

No

VH Terminal UVLO

No

Over Current Detection Voltage (typ.)[V]

0.7

Dynamic Over Current Detection

No

Frequency Reduction Function

Yes

Current Detection Resistors

External

FET

SiC-MOSFET Integrated

Controller Type

QR

Vin1(Min.)[V]

15.0

Vin1(Max.)[V]

27.5

Withstand Voltage [V]

1700

SW Frequency (Max.)[kHz]

120.0

VCC OVP

Auto Restart

BR PIN

No

On Resistor (MOSFET)[Ω]

1.12

Channel

1

Light Load mode

Yes

EN

No

Soft Start

Yes

Thermal Shut-down

Yes

Under Voltage Lock Out

Yes

Operating Temperature (Min.)[°C]

-40

Operating Temperature (Max.)[°C]

105

Package Size [mm]

10x15 (t=4.7)

Features:

  • Long Time Support Product for Industrial Applications
  • 6 Pins: TO220-6M Package
  • Built-in 1700 V/4 A/1.2 Ω SiC-MOSFET
  • Quasi-resonant Type (Low EMI)
  • Frequency Reduction Function
  • Low Current Consumption (19 μA) during Standby
  • Burst Operation at Light Load
  • SOURCE Pin Leading Edge Blanking
  • VCC UVLO (Under Voltage Drop Out protection)
  • VCC OVP (Over Voltage Protection)
  • Over Current Protection Circuit per Cycle
  • Soft Start Function
  • ZT Pin Trigger Mask Function
  • ZT OVP (Over Voltage Protection)

Design Resources



Tools

Calculation Tools

This Calculation Sheet supports the application circuit design of switching regulators. The sheet has formulas necessary for determining peripheral parts. You can easily determine the circuit parameters that meet the desired characteristics by setting the values according to the guidance.
  • Calculation-sheet for the circuit theoretical formula (QR)

2D/3D/CAD

  • TO220-6M Footprint / Symbol
  • TO220-6M STEP Data
