RQ6E055BN
Nch 30V 5.5A Power MOSFET
RQ6E055BN
Nch 30V 5.5A Power MOSFET
RQ6E055BN is small surface mount package MOSFET for switching.
For Automotive usage, please contact Sales.
Product Detail
Specifications:
Package Code
SOT-457T
JEITA Package
SC-95
Applications
Switching, Motor
Number of terminal
6
Polarity
Nch
Drain-Source Voltage VDSS[V]
30
Drain Current ID[A]
5.5
RDS(on)[Ω] VGS=4.5V(Typ.)
0.03
RDS(on)[Ω] VGS=10V(Typ.)
0.019
RDS(on)[Ω] VGS=Drive (Typ.)
0.03
Total gate charge Qg[nC]
4.4
Power Dissipation (PD)[W]
1.25
Drive Voltage[V]
4.5
Mounting Style
Surface mount
Bare Die Part Number
Available: K4009
Storage Temperature (Min.)[°C]
-55
Storage Temperature (Max.)[°C]
150

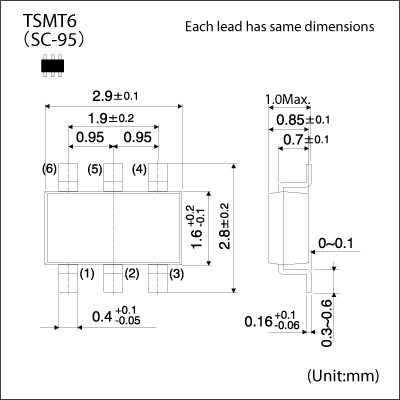

Package Size [mm]
2.9x2.8 (t=1.0)
Features:
- Low on - resistance.
- Built-in G-S Protection Diode.
- Small Surface Mount Package(TSMT6).
- Pb-free lead plating; RoHS compliant.
