ROHM Releases Two Current Detection Reference Designs
Reference designs are increasingly being used as a way to reduce development man-hours. BOM can be quickly determined by selecting the best devices for the circuit and referring to the evaluation results. ROHM reference designs include block diagrams, schematics, Gerber data, and evaluation results that can be used for design repurposing and turnkey development to minimize design load.
Current sensing plays an important role in the stable operation and safety of a variety of equipment. In conjunction with the release of new current sense amplifiers, two current sense reference designs are now available (below).
ROHM Releases Two Current Detection Reference Designs
Reference designs are increasingly being used as a way to reduce development man-hours.
BOM can be quickly determined by selecting the best devices for the circuit and referring to the evaluation results.
ROHM reference designs include block diagrams, schematics, Gerber data, and evaluation results that can be used for design repurposing and turnkey development to minimize design load.
Current sensing plays an important role in the stable operation and safety of a variety of equipment.
In conjunction with the release of new current sense amplifiers, two current sense reference designs are now available (below).
REFSENS003
30A Current Sensing with current sense Amplifier(CSA)
＊Boards are also available for purchase as EVKs.
REFSENS002

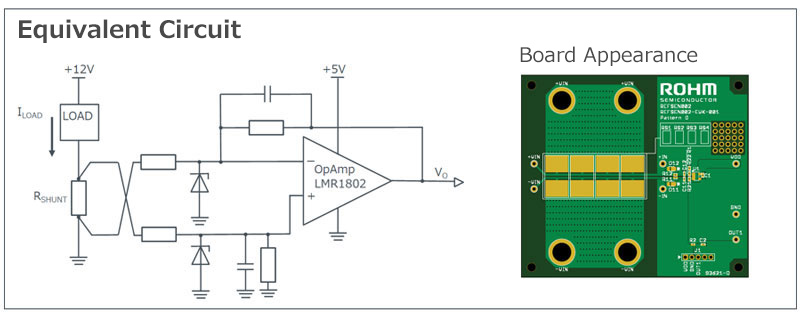

100A shunt resistor and operational amplifier current sense circuit reference design
