ML86112
Extensive lineup of interface conversion LSI
Standard interface "MIPI CSI-2 / LVTTL signal" can be supported Compact video decoder " ML86112 "
- MIPI CSI-2 / LVTTL Output Video Decoder
ML86112
- The video decoders are LSIs that convert analog video signal into digital data.
ML86112 can be used as an interface conversion LSI.
Supports automotive SoC standard interface
MIPI CSI-2 / LVTTL Output
Video Decoder ML86112
ML86112 3 features
Feature.1

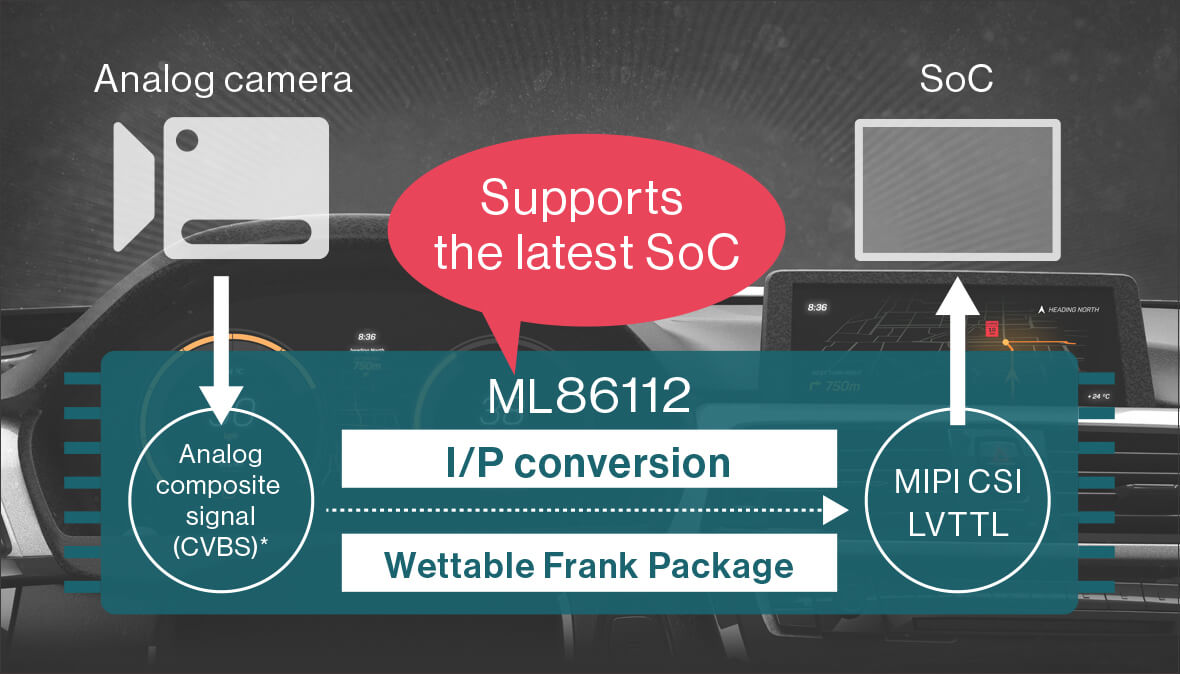

Analog video signals can be into input the latest SoC
In addition to the conventional LVTTL signal*, MIPI CSI-2* is often used as in-vehicle SoC interface.
The ML86112 has two signal outputs, and it's possible to connecte to various SoC.
It is possible to easily connect an analog camera to the automobile system.
Term Description
- LVTTL :
Low Voltage Transistor Transistor Logic : The ML86112 outputs ITU-R BT.656 format signals. - MIPI CSI-2 :
Mobile Industry Processor Interface (MIPI) : Mobile Industry Processor Interface (MIPI) : An interface standard between the camera and the host processor. - Analog composite signal (CVBS) :
An analog composite signal is a video signal that combines a synchronization signal, a luminance signal, and a color signal.
Feature.2

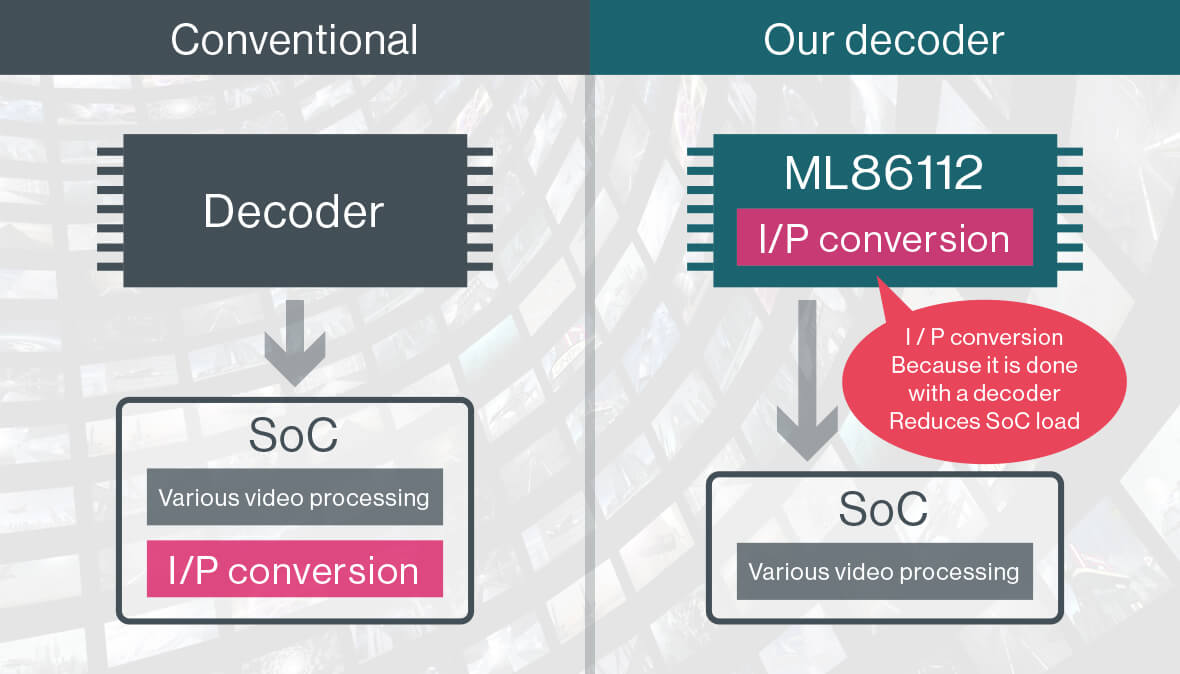

Built-in I / P conversion function reduces SoC load
When displaying an analog composite video signal on an LCD monitor, it is necessary to convert the video signal from the interlaced method* to the progressive method*.
The I / P conversion function of the ML86112 outputs a progressive digital video signal to reduce the SoC load.
Term Description
- Interlaced method :
One image is divided into an odd field of odd-numbered scanning lines and an even-numbered field of even-numbered scanning lines.
This is a method of transmitting odd-numbered fields first and then even-numbered fields. One image is displayed in two transmissions.
By increasing the field frequency, this way can indicate a smooth picture of a movement by a small amount of information. - Progressive method :
This is a method of transmitting all scanning lines of one video in order. One image is displayed in one transmission.
Although the amount of data to be transmitted is twice that of the interlaced method, it can display clear images with high resolution.
Feature.3
Uses a wettable flank package for increased productivity

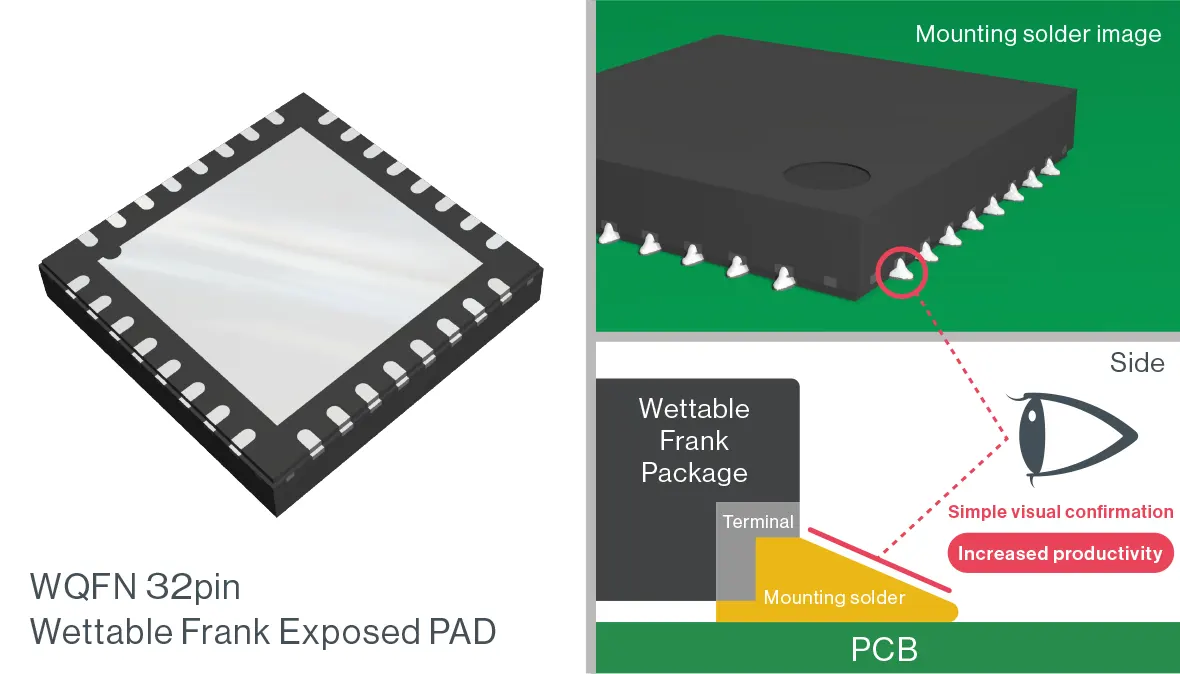

The ML86112 uses a wettable flank package.
The solderability of the electrodes can be visually confirmed from the side of the package, preventing deterioration of assembly quality.
Productivity can be expected to improve by introducing inspection equipment for assembly inspection visually.
Spec
Features of ML86112
The new product ML86112 is a compact video decoder LSI for automobiles that convert analog video signals into digital data.
ML86112 can be used as an interface conversion LSI.
| Item | Specifications |
|---|---|
| Analog video input | Composite video signal (NTSC / PAL) |
| Digital video output | MIPI CSI-2 or LVTTL (BT.656) |
| I/P conversion function | In-field interpolation |
| Supply Voltage | 3.3V / 1.2V |
| Operating Temperature (Ambient temperature) | -40°C to +105°C |
| Package | WQFN 32pin 0.5pitch plastic Wettable Frank Exposed PAD (Back side GND) |
- Application
- Display Audio
- Car Navigation
- Application
- Display Audio
- Car Navigation
Evaluation kit
The ML86112 is available in an evaluation kit.

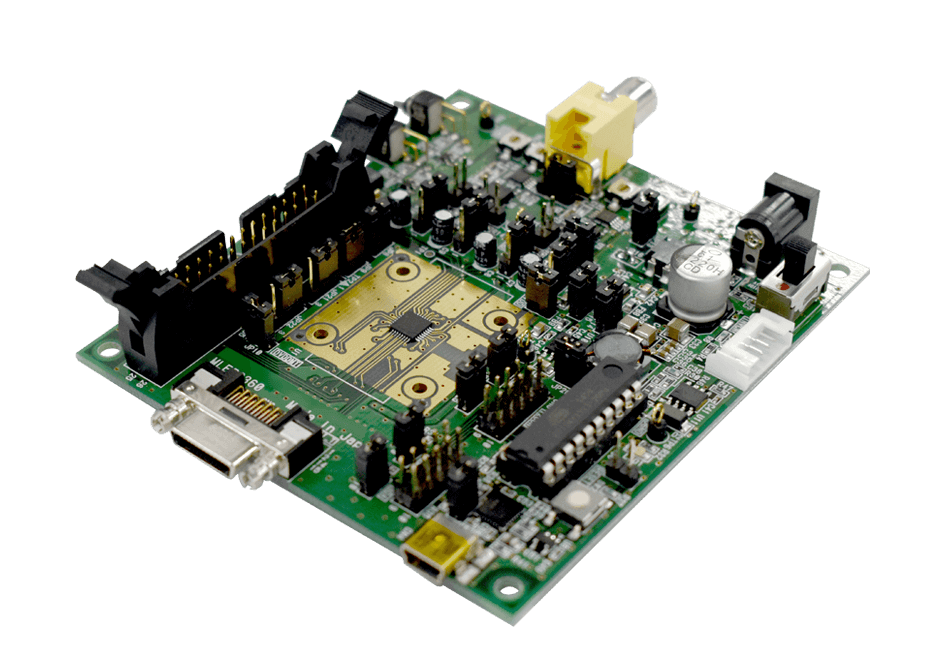

ML86112 Evaluation kit
- The ML86112 evaluation kit includes the following items.
- ML86112 evaluation board
- User's Manuals
- Register setting software : Video Arrangement Studio

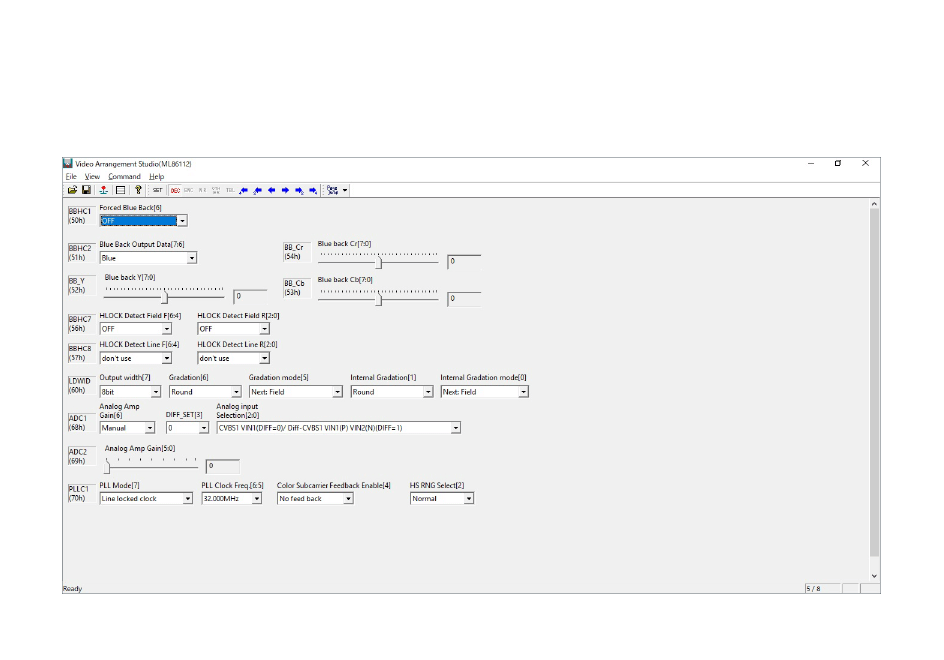

Register setting software
Video Arrangement Studio
- Application software that sets the internal registers of the ML86112.
Control the evaluation board with I2C from a PC (USB port).

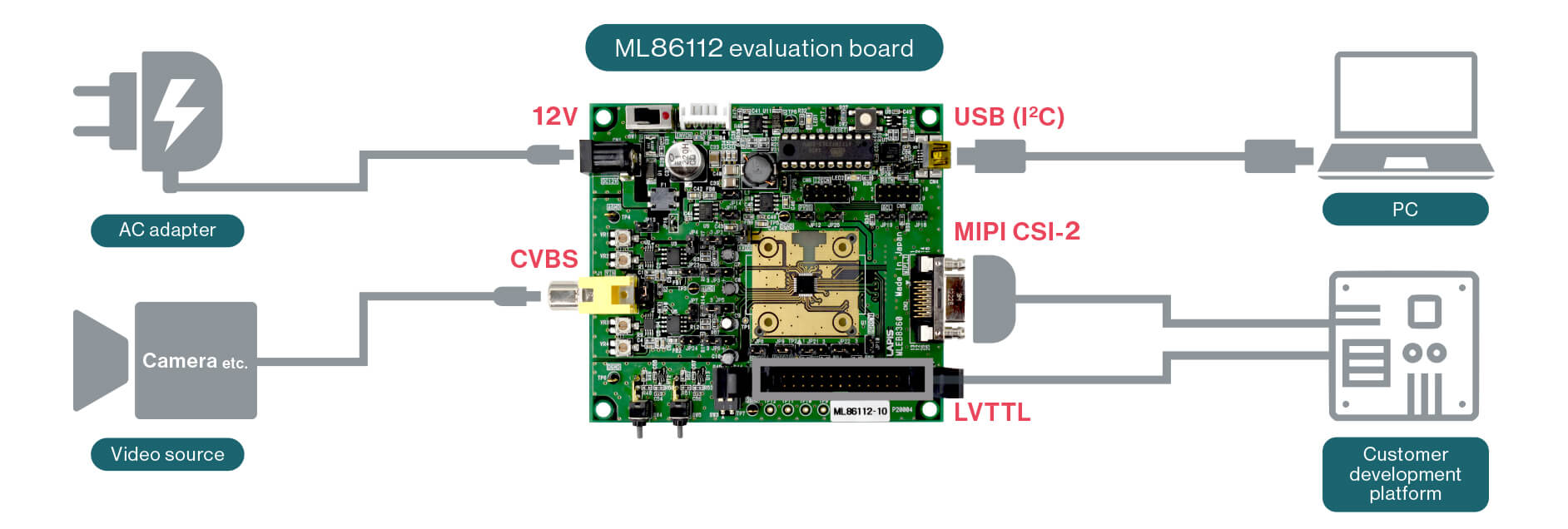

Connection image
Line up
Various interface conversion LSI lineup suitable for SoC and panel interfaces
MIPI CSI-2 / DSI bridge LSI and eDP bridge LSI products will be released
| Item | Part No. | Functions | Features | Package |
|---|---|---|---|---|
| Video Decoder | ML86101A | CVBS → LVTTL | CVBS Input, LVTTL Output Decoder | 48pin TQFP 0.5pitch |
| ML86112 | CVBS → MIPI CSI-2 / LVTTL | CVBS Input, MIPI CSI-2, LVTTL Output Decoder | 32pin WQFN 0.5pitch | |
| ML86V7675 | CVBS or Component → LVTTL | CVBS, Component Input, LVTTL Output Decoder | 64pin TQFP 0.5pitch | |
| Video Encoder | ML86640 | LVTTL → CVBS | LVTTL Input, CVBS Output Encoder | 64pin TQFP 0.5pitch |
| ML86V7655 | LVTTL → CVBS/Component | LVTTL Input, CVBS, Component Output Encoder | 100pin TQFP 0.5pitch | |
| High-definition Video Decoder | under planningML86150 | CVBS(SD/HD/FHD) → MIPI CSI-2/LVTTL | CVBS(SD/HD/FHD) Input, MIPI CSI-2 / LVTTL Output, Supports SD/HD/FHD transmission | 32pin WQFN 0.5pitch |
| High-definition Video Encoder | under planningML86650 | MIPI CSI-2 → CVBS(SD/HD/FHD) | MIPI CSI-2 Input, CVBS(SD/HD/FHD) Output, Supports SD/HD/FHD transmission | 24pin WQFN 0.5pitch |
| Video Interface | ML86795 | LVTTL / LVDS / MIPI CSI-2 ↔ LVTTL/LVDS/MIPI CSI-2 | MIPI CSI-2 Bridge, Convert LVTTL / LVDS / MIPI CSI-2 to each other | 64pin WQFN 0.5pitch |
| under developmentML86796 | MIPI CSI-2 ×4 → MIPI CSI-2 ×2 (Supports 4 virtual channel) | MIPI CSI-2 Bridge (Image Aggregation), Supports Virtual Channel | 100pin TQFP 0.5pitch | |
| Under developmentML86797 | MIPI CSI-2 / DSI ↔ LVDS MIPI CSI-2 ↔ MIPI DSI | MIPI CSI-2 / DSI Bridge, Convert MIPI CSI-2 / DSI to each other | 64pin WQFN 0.5pitch | |
| Under developmentML86799 | LVDS / MIPI CSI-2 / DSI → eDP | eDP Bridge | 64pin WQFN 0.5pitch | |
| under developmentML86781 | LVDS or MIPI CSI-2/DSI → LVDS/MIPI CSI-2 | MIPI CSI-2 Bridge (Image Separation), Possible to separate input image into 2 images | 128pin TQFP 0.4pitch |
