      Build-in Speech Playback Function ML62Q2000 Series / ML62Q2700 Group (U16)

      Overview

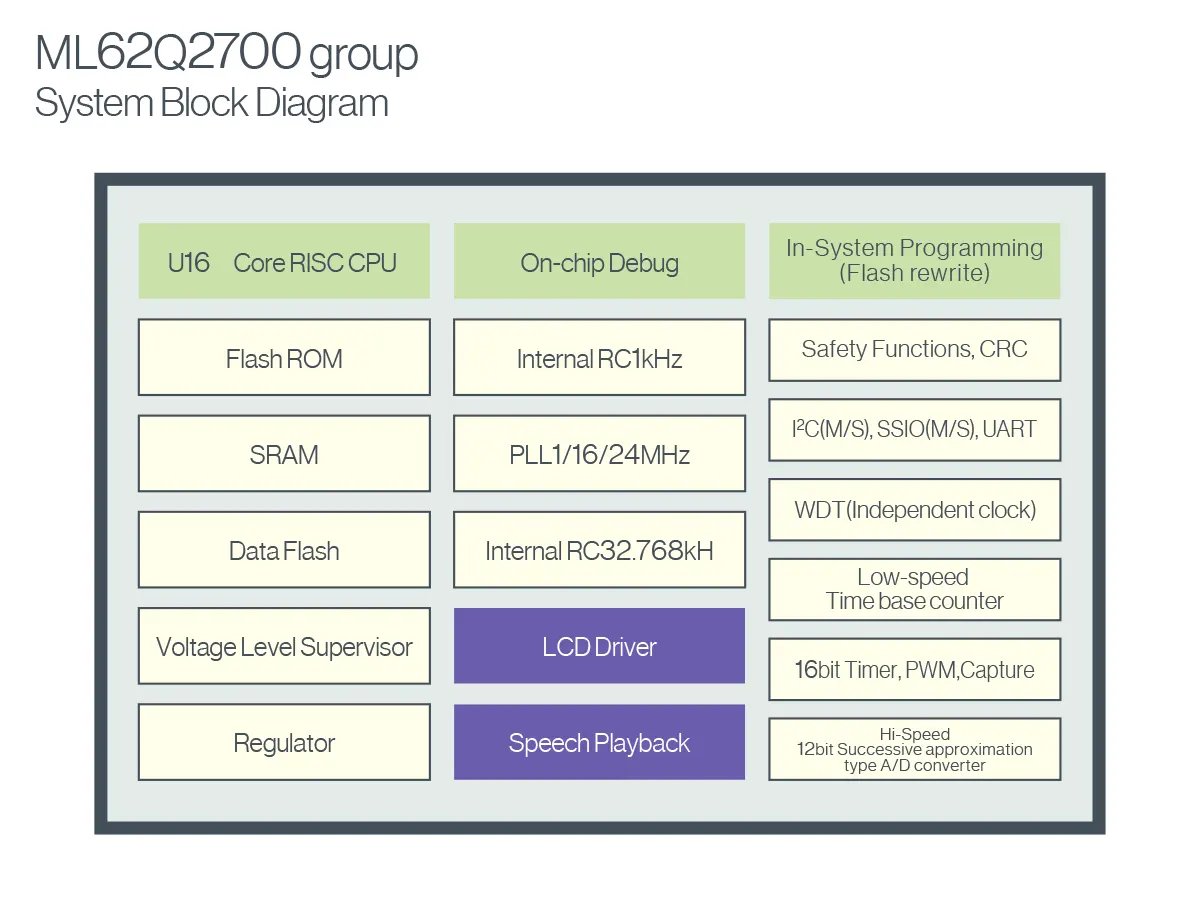

      ML62Q2700 group System Block Diagram

      The ML62Q2700 group CMOS MCUs utilize LAPIS TECHNOLOGY™ 's original 16-bit RISC U16 Core to achieve superior performance.
      This group is equipped with program memory(Flash memory), data memory(RAM), data Flash (Erase unit:128byte, Write unit:1byte), and rich peripheral functions such as the multiplier/divider, CRC generator, Clock generator, Timer, General Purpose Ports, UART, Synchronous serial port, I2C bus interface unit(Master, Slave),
      Voltage Level Supervisor(VLS), High-speed Successive approximation type 12bit A/D converter, LCD driver, Speech playback function, Safety function (IEC60730/60335 Class B), and so on.
      The built-in on-chip debug function enables debugging and programming the software. Also, the ISP (In-System Programming) function supports the Flash programming in the production line.

      Product Features

      Feature 1Built-in hardware-based speech playback function facilitates speech playback without the need to purchase middleware.

      Built-in hardware-based speech playback function facilitates speech playback without the need to purchase middleware

      Built-in hardware-based ADPCM speech playback function that can reduce the CPU load when playing guidance and sound effects.
      Facilitates Speech Playback by calling the library function for playing sound provided by LAPIS TECHNOLOGY™.


      Feature 2High-speed 12-bit successive approximation A/D converter that contributes to high-accuracy sensor measurement

      High-speed 12-bit successive approximation A/D converter

      High-speed (Min 1.375μs / Ch.) A/D conversion is possible, and the number of times of sensing can be increased in a short period, contributing to improving measurement accuracy.


      Feature 3Built-in safety functions to protect equipment and systems from unforeseen circumstances

      Self Diagnostic Functions
      • Successive approximation type A/D converter test
      • Clock mutual monitoring
      • UART self-test function
      • SSIO self-test function
      • I2C self-test function
      • WDT counter read
      • Port output level self-test function
      • MCU status interrupt
      • Clock backup function and the self-test
      Automatically detects
      abnormalities in each block
      Error Detection
      • RAM parity error detection
      • ROM unused area access reset
      • Flash memory CRC calculation
      Detects memory malfunctions
      due to memory data errors or
      Invalid memory access
      Memory Protection
      • RAM guard
      • SFR guard
        (Special Function Register)
      SFR/RAM erroneous
      write prevention

      IEC60730 / IEC60335 (Class B) certified hardware with 14 safety functions.


      Feature 4Enables high-speed 24MHz operation at all operating voltages(1.8V to 5.5 V)

      Enables high-speed 24MHz operation at all operating voltages

      The maximum performance of the MCU can be demonstrated even at low voltage.


      Feature 5A High Accuracy Oscillation Circuit (±1.5%*1)Ideal for Serial Communication

      A High Accuracy Oscillation Circuit Ideal for Serial Communication

      UART communication is used without an external clock.

      Applicable Models:ML62Q2500 group, ML62Q2700 group
      *1:Condition : -40℃ to +85℃

      Applications

      L62Q2700 group is ideal for industrial such as measuring equipment requiring high accuracy analog measurement

      The ML62Q2700 group takes over the “Safety Function” of the ML62Q1000 series and also has class-leading power consumption and a high-speed 12-bit successive approximation A/D that contributes to improving sensor measurement accuracy. Therefore, the ML62Q2700 group is ideal for industrial such as measuring equipment requiring high accuracy analog measurement, and home appliances such as water heaters, and rice cookers.

      speech synthesis utility (Speech LSI Tools)

      Easy development with speech synthesis utillty

      Run the 'Speech LSI Tools' program on a PC to create sound code data using a ML62Q2700 group.
      Speech LSI Tools include a Wave Editor that makes it easy to change (i.e.fade in/out), cut, and connect original sound data (WAVE files) as well as a Speech LSI Utility capable of editing phrases and converting WAVE files to the HQ-ADPCM and ADPCM2 formats.

      Speech LSI Tools Operating Environment

      • ・Microsoft® ・Windows
        Windows 7, Windows 8.1, Windows 10
        Note: Compatible with 32bit (x86)/64bit (x64) environments
      • Processor and memory
        Set up according to OS requirements
      • Hard disk space
        1GB usable HDD space
      • Audio
        Windows compatible sound card and speakers
      • USB Port
        Note: Program data is developed separately in the LEXIDE-U16 integrated development environment.

      Product Longevity Program

      Product Longevity Program

      The ML62Q2000 series is a product covered by the "Product Longevity Program".
      Please visit the page for the Product Longevity Program.
      *Please contact us for more information.

      Product Longevity Program Contact Us

      "LAPIS TECHNOLOGY™" is a trademark or a registered trademark of ROHM Co., Ltd.
