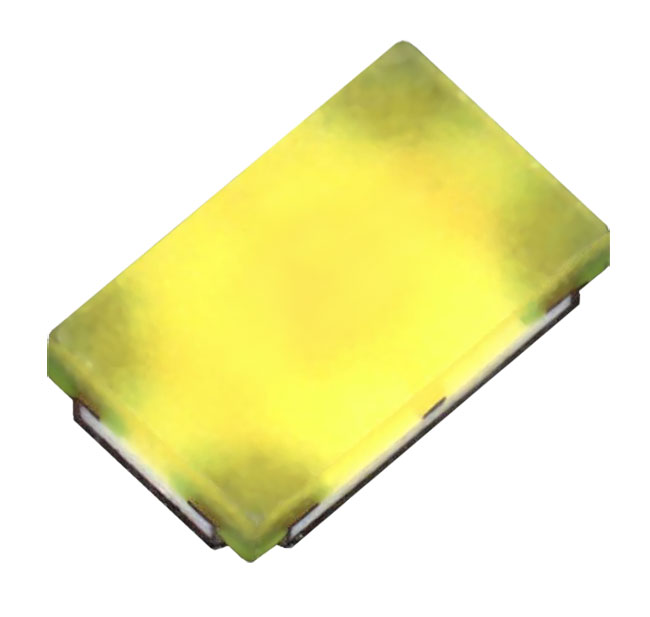

SMLP13WBC9W
PICOLED™ Series

ROHM's PICOLED™-Using its second-to-none merits from ultra-small & ultra-thin configuration, ultra-fine LED matrices beyond common sense can be made, boosting the level of expression ultimately. Also, this device is indispensable for future design-in for whatever application requiring downsizing.

Not recommended for new design: This product is not currently sold for new designs. We are developing SMLP14WBCN1W as an alternative, please contact our sales for more information.

Data Sheet Buy Sample
Data Sheet Buy Sample
  • Documents
  • Tools
  • Packaging & Quality
  • FAQs
  • Contact Us

Product Detail


Part Number | SMLP13WBC9W1
Status | Active
Package | SMLP1xW
Unit Quantity | 5000
Minimum Package Quantity | 5000
Packing Type | Taping
RoHS | Yes

Specifications:

Package Type

Mini-mold

LED Type

Standard

Package size[mm]

1.0x0.6 (t=0.2)

Emitting color

White

Luminous Intensity(Single)(Typ.)[mcd]

150.0

Number of Brightness Rank

4

Chromaticity coordinates(x,y)

(0.29, 0.29)

Forward Voltage VF (Typ.) [V]

2.9

IF @ VF [mA]

5

Chip Structure

InGaN

Power Dissipation [mW]

33

Operating Temperature[°C]

-40 to 85

Storage Temperature [°C]

-40 to 100

Features:

  • PICOLED™ series
  • 1.0x0.6(t=0.2)mm :Ultra-small & ultra-thin package
