Not Recommended for New Designs SML813WBC8W

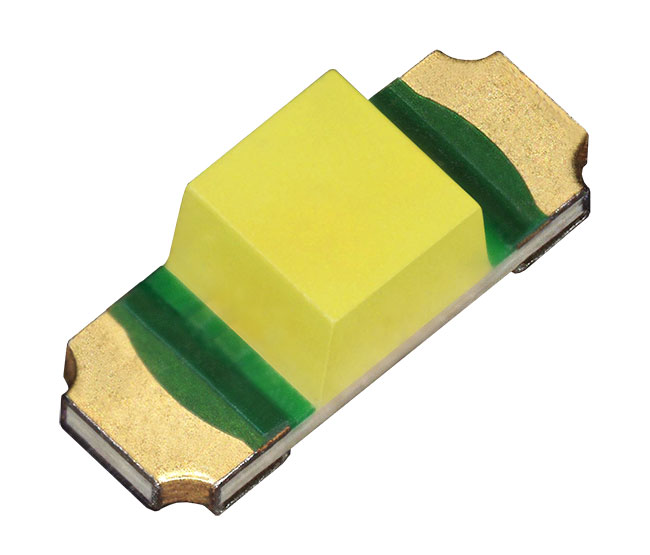

Reverse mount available chip LED

This product cannot be used for new designs (Not recommended for design diversion).

Product Detail



Replacement Product For SML813WBC8W

Part Number
SML813WBC8W
SML813WBC8W
SML811WBCN1W
SML811WBCN1W
Ordering Part Number SML813WBC8W1 SML811WBCN1W1
Similar Level - Same Pinout, Package
Data Sheet
Supply Status Not Recommended for New Designs Active
Package SML-81 SML-81
Unit Quantity 3000 3000
Minimum Packing Quantity 3000 3000
Packing Type Taping Taping
RoHS Yes Yes
Package Type Reverse mount available Reverse mount available
LED Type Standard Standard
Application Home Appliance, Industrial Equipment Home Appliance, Industrial Equipment
Package size[mm] 3.4x1.25 (t=1.1) 3.4x1.25 (t=1.1)
Emitting color White White
Luminous Intensity(Single)(Typ.)[mcd] 45.0 22.0
Number of Brightness Rank 3 3
Forward Voltage V F (Typ.) [V] 2.9 2.8
I F @ V F [mA] 5 2
Chromaticity coordinates(x,y) (0.30, 0.30) (0.272, 0.279)
Chip Structure InGaN InGaN
Power Dissipation [mW] 33 35
Operating Temperature[°C] -40 to 85 -40 to 85
Storage Temperature [°C] -40 to 100 -40 to 100
