PMR100HZP7FV
6432(2512)Size, Ultra-low Ohmic Chip Resistors For Current Detection (AEC-Q200 Qualified)
PMR100HZP7FV
6432(2512)Size, Ultra-low Ohmic Chip Resistors For Current Detection (AEC-Q200 Qualified)
Ultra-low ohmic chip resistors for current detection are specialized in low resistance employing metal resistive element tolerant to high current and uniquely designed trimingless to attain precise resistance for accurate current detection and high-current switching.

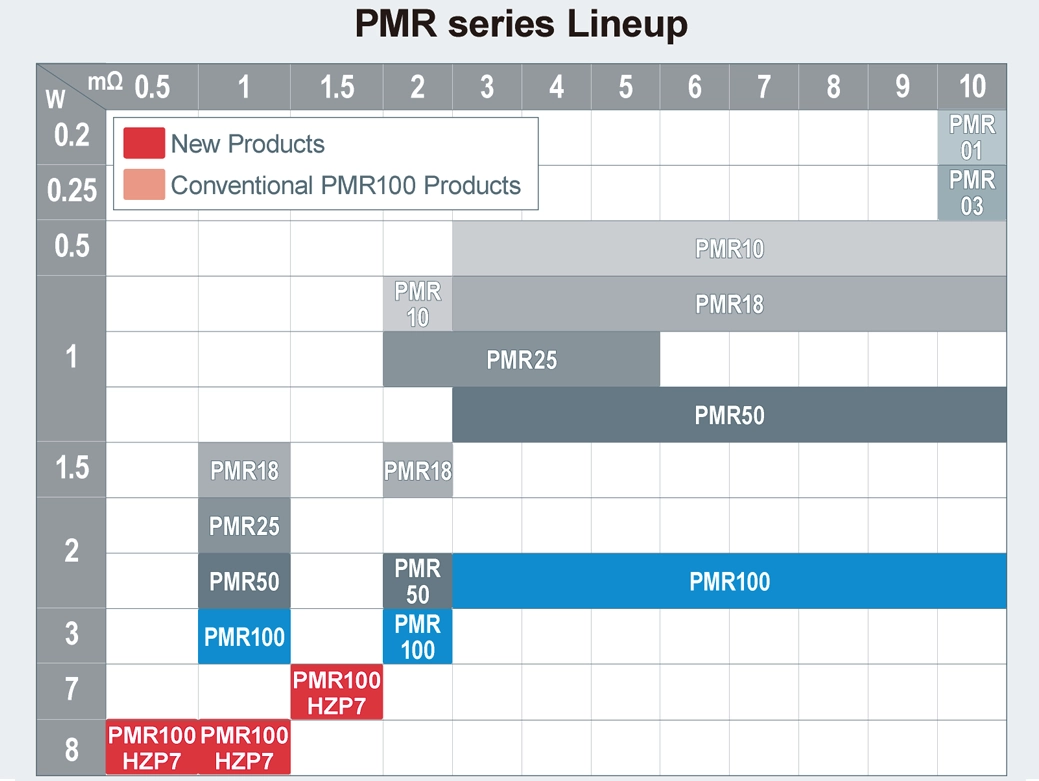

Lineup
Product Detail
Specifications:
Automotive grade
Yes
Size[mm](inch)
6432(2512)
Rated Power[W]
8, 7
Resistance Tolerance
F (±1%)
Resistance range[Ω]
0.5m to 1.5m
Resistance(Min.)[Ω]
0.0005
Resistance(Max.)[Ω]
0.0015
Temperature Coefficient[ppm/°C]
-75 to 0, ±50
Operating Temperature[°C]
-65 to 175
Type
For current sensing
Operating Temperature (Max.)[°C]
175
Common Standard
AEC-Q200 (Automotive Grade)
Features:
- Rated power of 7W, 8W realized by 2512 size, contributing to circuit space saving
- Achieved an excellent temperature characteristic by using a special alloy for the resistive element
- For current detection: Supported from 0.5mΩ.
- ROHM resistors have obtained ISO9001 / IATF16949 certification
- Corresponds to AEC-Q200
Supporting Information
Overview

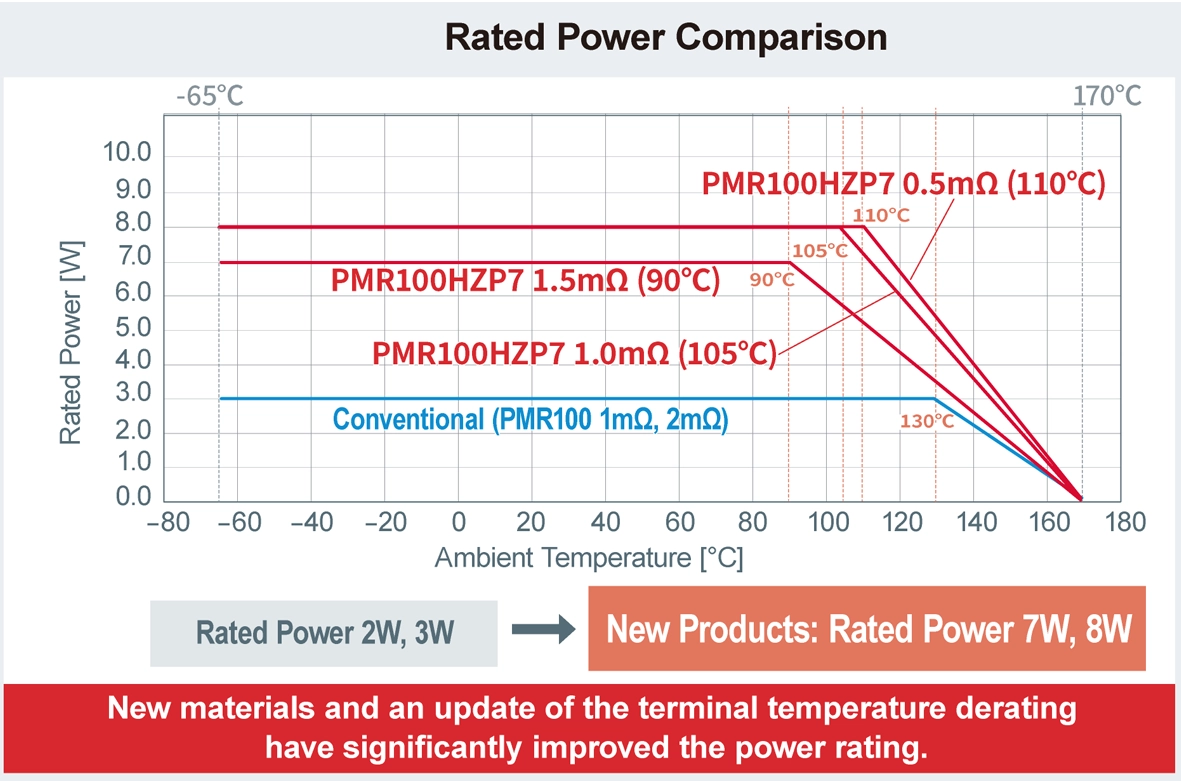

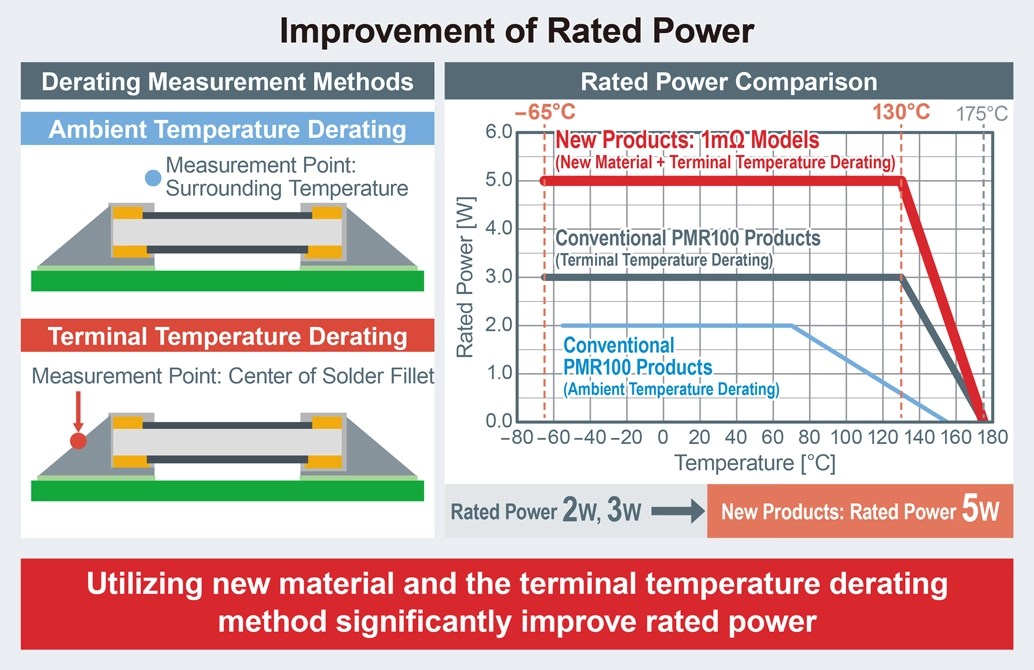

These products achieve a rated power of 8W by utilizing new materials with excellent temperature characteristics and terminal temperature derating.
This represents the best-in-class for 6432-size flat chip types with protective film. Achieving approx. 4 times higher rated power than conventional PMR100 2W products and around 2.67 times higher than 3W models makes it possible to replace larger high-power types - contributing to greater miniaturization in a variety of applications.
Additionally, a rated terminal temperature of 110°C (for 0.5mΩ products) and operating temperature range from -65°C to +175°C are guaranteed, ensuring stable operation even in extreme temperature environments. An excellent temperature coefficient of resistance (TCR) of -75～0ppm/°C, ±50ppm/°C enables reliable, high accuracy current detection.
Application Examples
These products are universally compatible for current sensing in a wide range of applications.
• Automotive: EPS, electric compressors, oil/water pumps, door motors, ADAS controllers, etc.
• Industrial Equipment: Industrial power modules, power conditioners, power tools, PV inverters,
server power supplies, UPS (Uninterruptible Power Supplies), base station power supplies, etc.
• Consumer applications: Home appliances (e.g. Air conditioners, refrigerators, vacuum cleaners, washing machines) etc.
Reference Design / Application Evaluation Kit
-
- Reference Design - REF68012
- 30A Shunt-based current sensing (uni-direction) with CSA on 24V system
In the automotive and industrial equipment fields, current sensing circuits are essential for applications such as current feedback, overcurrent limitation, and battery level monitoring. The shunt-based current sensing circuit is the most standard circuit for current measurement and monitoring. ROHM provides solutions that leverage the resistor technology it has developed since its founding, as well as the analog and thermal design technologies it has cultivated over many years, contributing to improved system performance, higher power efficiency, and higher reliability through high-precision current sensing.
The components you select will vary depending on the power supply system and detection current value. We have a lineup of reference designs for 12V, 24V, and 48V systems, as well as current sensing values from 20 to 100A. We publish not only the schematic design guide but also thermal evaluation data for shunt resistors. Thermal issues are an important factor in shunt-based current sensing. Please use these as design references to help reduce design man-hours.
This reference design is designed for 30A, uni-direction current sensing on 24V systems.
-
- Reference Design - REF68013
- 50A Shunt-based current sensing (uni-direction) with CSA on 48V system
In the automotive and industrial equipment fields, current sensing circuits are essential for applications such as current feedback, overcurrent limitation, and battery level monitoring. The shunt-based current sensing circuit is the most standard circuit for current measurement and monitoring. ROHM provides solutions that leverage the resistor technology it has developed since its founding, as well as the analog and thermal design technologies it has cultivated over many years, contributing to improved system performance, higher power efficiency, and higher reliability through high-precision current sensing.
The components you select will vary depending on the power supply system and detection current value. We have a lineup of reference designs for 12V, 24V, and 48V systems, as well as current sensing values from 20 to 100A. We publish not only the schematic design guide but also thermal evaluation data for shunt resistors. Thermal issues are an important factor in shunt-based current sensing. Please use these as design references to help reduce design man-hours.
This reference design is designed for 50A, uni-direction current sensing on 48V systems.
-
- Reference Design - REF68014
- 100A Shunt-based current sensing (uni-direction) with CSA on 48V system
In the automotive and industrial equipment fields, current sensing circuits are essential for applications such as current feedback, overcurrent limitation, and battery level monitoring. The shunt-based current sensing circuit is the most standard circuit for current measurement and monitoring. ROHM provides solutions that leverage the resistor technology it has developed since its founding, as well as the analog and thermal design technologies it has cultivated over many years, contributing to improved system performance, higher power efficiency, and higher reliability through high-precision current sensing.
The components you select will vary depending on the power supply system and detection current value. We have a lineup of reference designs for 12V, 24V, and 48V systems, as well as current sensing values from 20 to 100A. We publish not only the schematic design guide but also thermal evaluation data for shunt resistors. Thermal issues are an important factor in shunt-based current sensing. Please use these as design references to help reduce design man-hours.
This reference design is designed for 100A, uni-direction current sensing on 48V systems.
-
- Reference Design - REF68015
- 100A Shunt-based current sensing (bi-direction) with CSA on 48V system
In the automotive and industrial equipment fields, current sensing circuits are essential for applications such as current feedback, overcurrent limitation, and battery level monitoring. The shunt-based current sensing circuit is the most standard circuit for current measurement and monitoring. ROHM provides solutions that leverage the resistor technology it has developed since its founding, as well as the analog and thermal design technologies it has cultivated over many years, contributing to improved system performance, higher power efficiency, and higher reliability through high-precision current sensing.
The components you select will vary depending on the power supply system and detection current value. We have a lineup of reference designs for 12V, 24V, and 48V systems, as well as current sensing values from 20 to 100A. We publish not only the schematic design guide but also thermal evaluation data for shunt resistors. Thermal issues are an important factor in shunt-based current sensing. Please use these as design references to help reduce design man-hours.
This reference design is designed for 100A, bi-direction current sensing on 48V systems.
