CSL0406WBCW

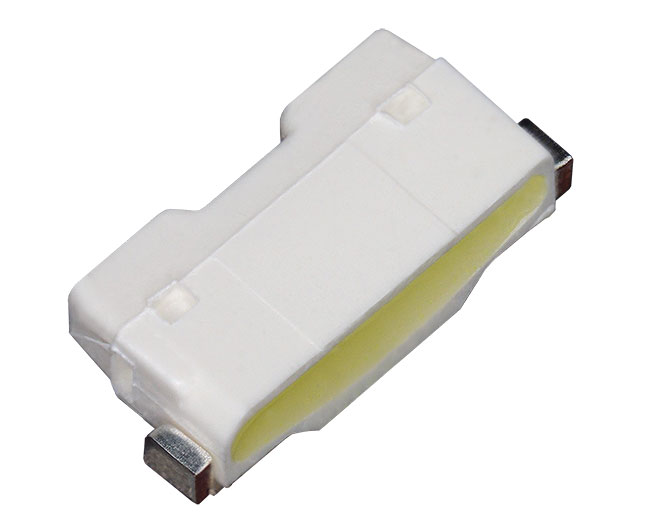

Side View White LED

CSL0406WBCW is side view high brightness white LED.

Product Detail


Part Number | CSL0406WBCW1
Status | Active
Package | CSL0406
Unit Quantity | 2000
Minimum Package Quantity | 2000
Packing Type | Taping
RoHS | Yes

Specifications:

Package Type

Side-view

LED Type

High Brightness

Package size[mm]

2.8x1.2 (t=0.8)

Emitting color

White

Luminous Intensity(Single)(Typ.)[mcd]

2200.0

Number of Brightness Rank

4

Chromaticity coordinates(x,y)

(0.30, 0.28)

Forward Voltage VF (Typ.) [V]

3.2

IF @ VF [mA]

20

Chip Structure

InGaN

Power Dissipation [mW]

117

Operating Temperature[°C]

-40 to 85

Storage Temperature [°C]

-40 to 100

Features:

· Side view white LEDs
· High Brightness
