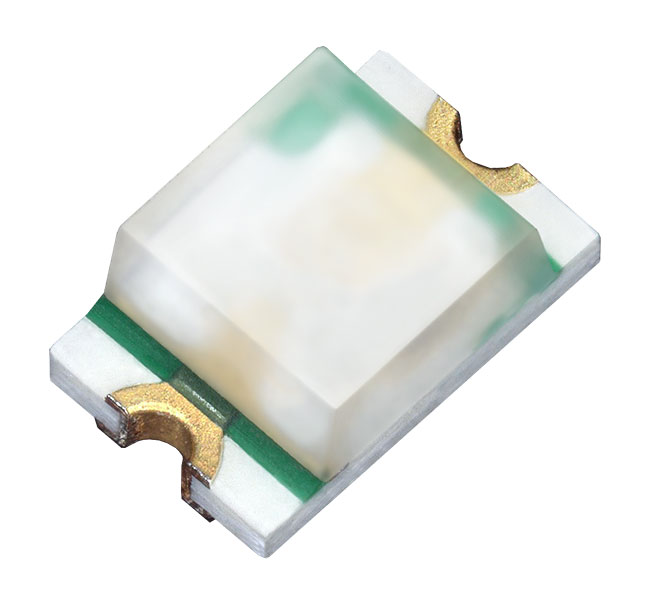

EXCELED™ series chip LED - SML-H12D8T(C)

ROHM's chip LED lineup consists of standard type,top-view type, side-view type and reverse-mount type.

Part Number | SML-H12D8TT86C
Status | Active
Package | SML-H12 Automotive
Unit Quantity | 3000
Minimum Package Quantity | 3000
Packing Type | Taping
RoHS | Yes

Specifications:

Common Standard

AEC-Q101

Package Type

Mini-mold

LED Type

EXCELED

Package size[mm]

2.0x1.25 (t=0.8)

Emitting color

Orange

Dominant wave-length λD(Single)(Typ.)[nm]

605.0

Luminous Intensity(Single)(Typ.)[mcd]

63.0

Forward Current(IF)[mA]

20

Forward Voltage VF (Typ.) [V]

2.2

Chip Structure

AlGaInP

Power Dissipation [mW]

54

Operating Temperature[°C]

-40 to 85

Features:

  • Abundant color variations with diverse luminous intensity types.
  • AEC-Q101 Qualified
