PICOLED™-RGB and PICOLED™-Duo Series

Overview | PICOLED™-Duo | PICOLED™-RGB | PICOLED™-RGB-side |
Application Example: Full-Color High Density Dot Matrix | Applications

The industry's most expressive compact chip LEDs

Overview : Compact form factor compatible with a wide range of applications

ROHM's lineup of PICOLED™s includes both 2-color and 3-color types. These ultra-compact LEDs offer unsurpassed versatility. For example, they can be used to configure high density dot matrixes with a pitch of only 2.0mm.
Side-view RGB types are also available for broader compatibility.

The industry's smallest, thinnest 2-color chip LEDs: PICOLED™-Duo

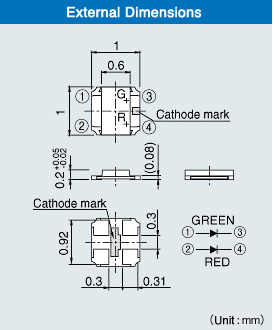

2-color Type 4-terminal Configuration SMLP-24 Series 1.0 to 1.0mm t = 0.2mm Package

External DimensionsDirectivity

(Ta = 25ºC)
Part No. Emitted
Color
Forward
Current
IF (mA)
Forward
Current
VF (V)
Emitted
Wavelength
D (nm)
Luminosity
IV
(mcd)
SML-P24MUW M 20 2.2 572 21
U 2.1 620 52

The industry's smallest, thinnest 3-color chip LEDs: PICOLED™-RGB

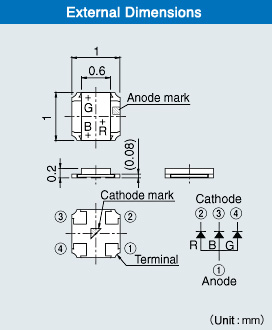

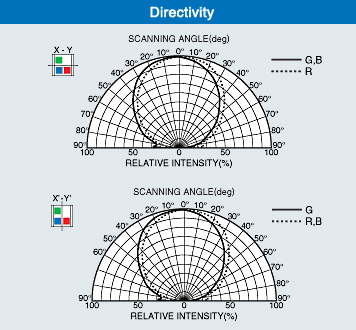

3-color Type 4-terminal Configuration SMLP34RGB Series 1.0 to 1.0mm t = 0.2mmPackage

External DimensionsDirectivity

(Ta = 25ºC)
Part No. Emitted
Color
Forward
Current
IF (mA)
Forward
Current
VF (V)
Emitted
Wavelength
D (nm)
Luminosity
IV (mcd)
SMLP34RGB2W R 5 2.2 624 35
G 3.3 527 110
B 3.2 470 45

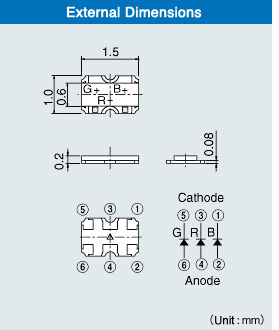

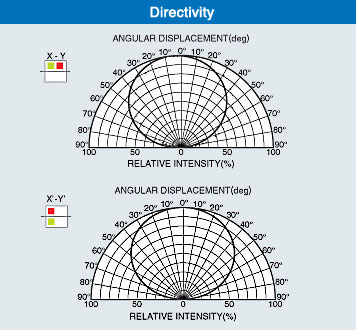

3-color Type 6-terminal Configuration SMLP36RGB Series 1.5 to 1.0mm t = 0.2mmPackage

External DimensionsDirectivity

(Ta = 25ºC)
Part No. Emitted
Color
Forward
Current
IF (mA)
Forward
Current
VF (V)
Emitted
Wavelength
D (nm)
Luminosity
IV (mcd)
SMLP36RGB2W R 5 2.2 624 35
G 3.3 527 110
B 3.2 470 45

Ultra-compact side-view 3-color chip LEDs are also available: PICOLED™-RGB-side Under Development

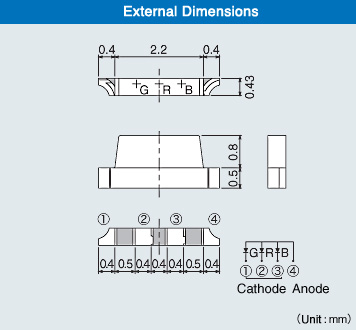

3-color side-view type MSL0201RGB Series 3.0 to 1.3mm t = 0.43mm External Dimensions

Package

(Ta = 25ºC)
Part No. Emitted
Color
Forward
Current
IF (mA)
Forward
Current
VF (V)
Emitted
Wavelength
D (nm)
Luminosity
IV (mcd)
MSL0201RGBW R 5 2.1 624 25
G 3 527 90
B 2.9 470 22
( ) : Reference value

Application Example: Full-Color High Density Dot Matrix

Full-color high density (2.0mm pitch) dot matrixes can be configured using SML-P24 and SML-P34 Series LEDs.

Application Example: Full-Color High Density Dot Matrix

Applications

Smartphones, mobile phones, digital cameras, IC recorders, portable audio, notebook PCs, home appliances, battery drive, and other sets requiring compact LEDs
